Release Info
| Catalog ID | NES-RH-AUS |
|---|---|
| Region | Australia (PAL-A) |
| Class | Licensed |
| Release Date | March 1, 1992 |
| Publisher | HAL Laboratory |
| Developer | HAL Laboratory |
| Players | 2 |
| Peripherals | NES Controller |

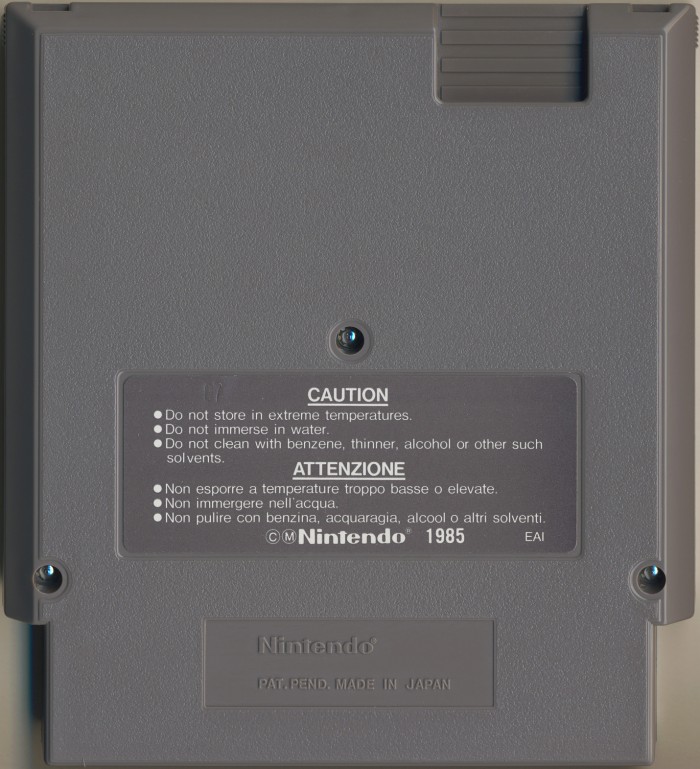

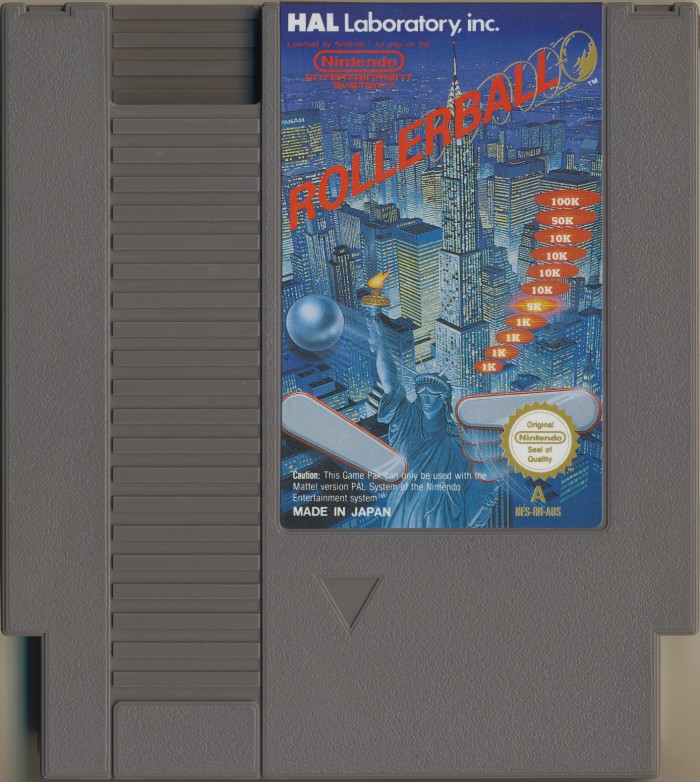

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-RH-AUS |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

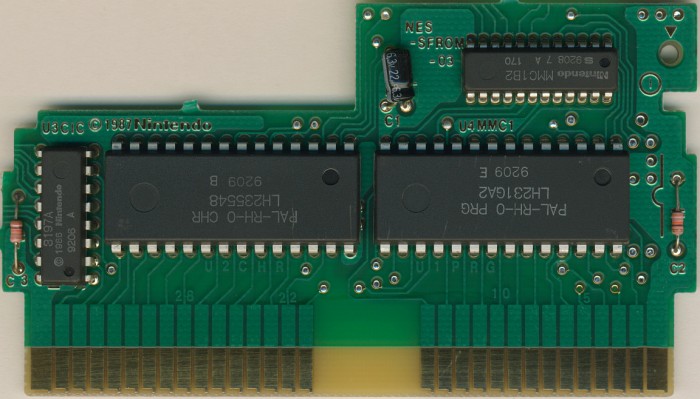

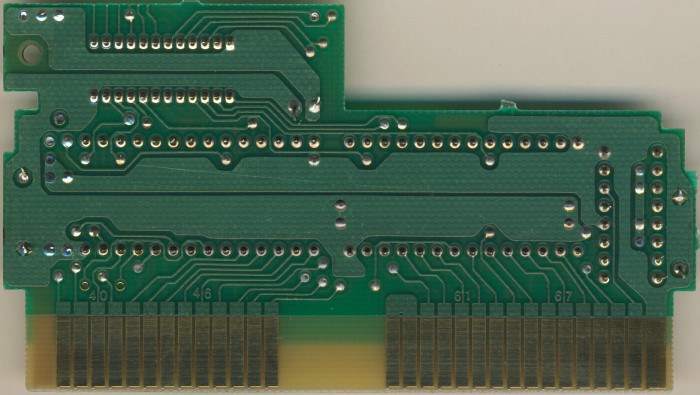

PCB Properties
| Name | NES-SFROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9209 |
| Est First Run | March 1992 |
| PCB Class | NES-SFROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3197A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-RH-0 PRG | 128 KB | 954C5ACB | 1 |
| CHR0 | PAL-RH-0 CHR | 32 KB | 38B4820D | 1 |
| N/A | ROMs Combined | 160 KB | A99016C6 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G A2 | Mask ROM 128 KB | DIP-28 | 9209 E | 9209 | |
| U2 CHR | Sharp | LH2355 48 | Mask ROM 32 KB | DIP-28 | 9209 B | 9209 | |
| U3 CIC | Sharp | 3197A | Nintendo CIC | DIP-16 | 9206 A | 9206 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9208 7 A 170 | 9208 |
