Release Info
| Catalog ID | NES-FX-CAN |
|---|---|
| Region | Canada (NTSC) |
| Class | Licensed |
| Release Date | July 4, 1989 |
| Publisher | Nintendo |
| Developer | Hudson Soft |
| Players | 1 |
| Peripherals | NES Controller |

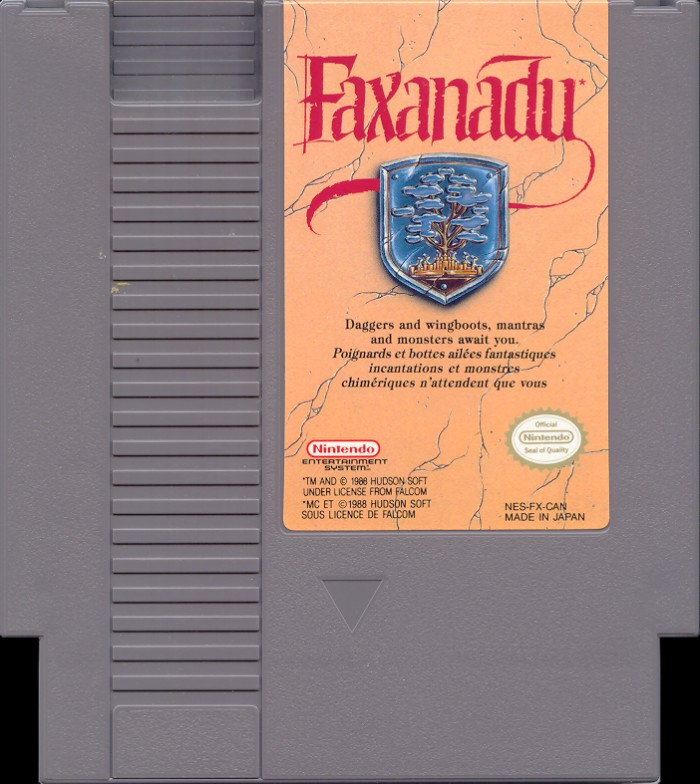

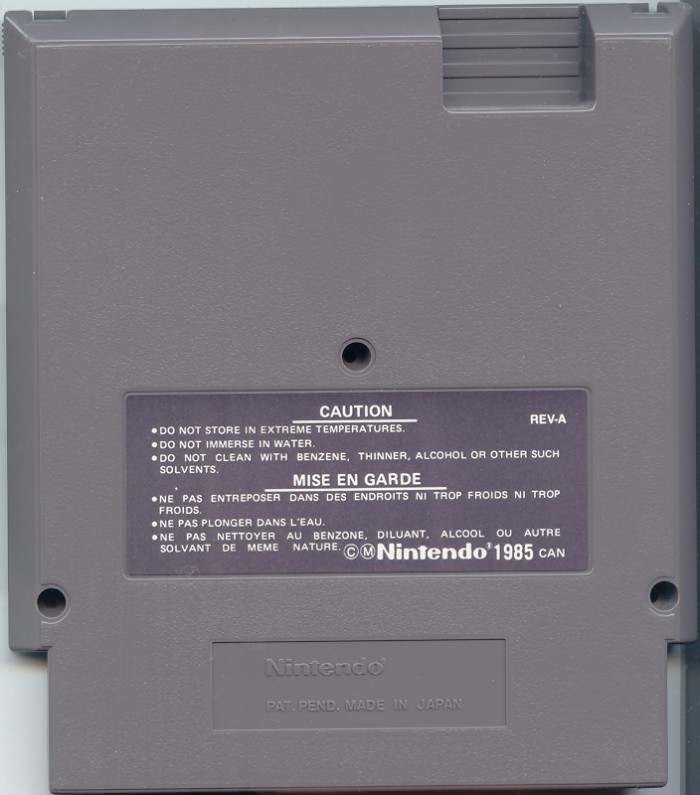

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-FX-CAN |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 19 |
PCB Properties
| Name | NES-SGROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8931 |
| Est First Run | August 1989 |
| PCB Class | NES-SGROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-FX-0 PRG | 256 KB | 57DD23D1 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 PRG-ROM | NEC | UPD23C2013 | Mask ROM 256 KB | DIP-32 | 8927 PY | 8927 | |
| IC2 CHR-RAM | Fujitsu | MB8464A-15L-SK | SRAM 8 KB | SDIP-28 | 8922 KT67 | 8922 | |
| IC3 MMC | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8928 5 A | 8928 | |
| IC4 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8931 5 CA | 8931 |
