Release Info
| Catalog ID | NES-EI-CAN |
|---|---|
| Region | Canada (NTSC) |
| Class | Licensed |
| Release Date | September 22, 1989 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

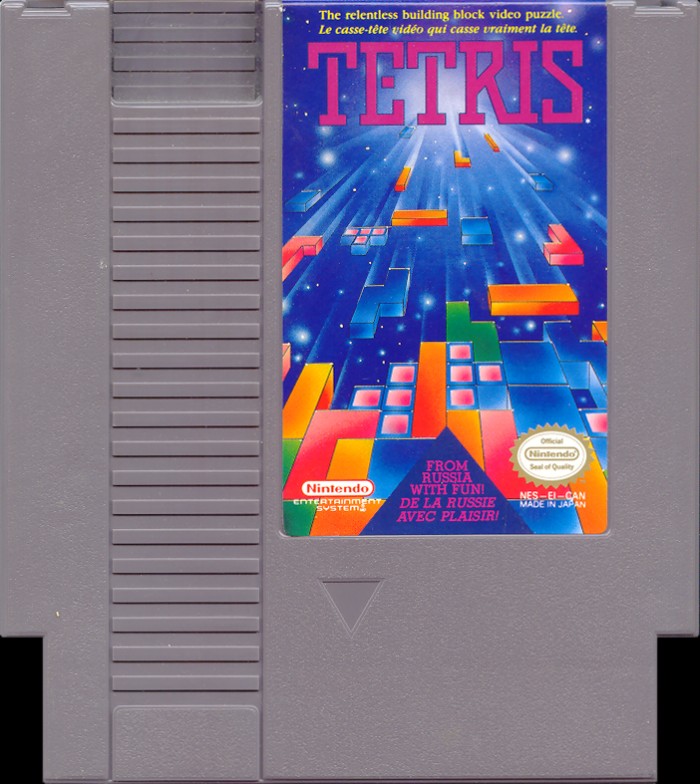

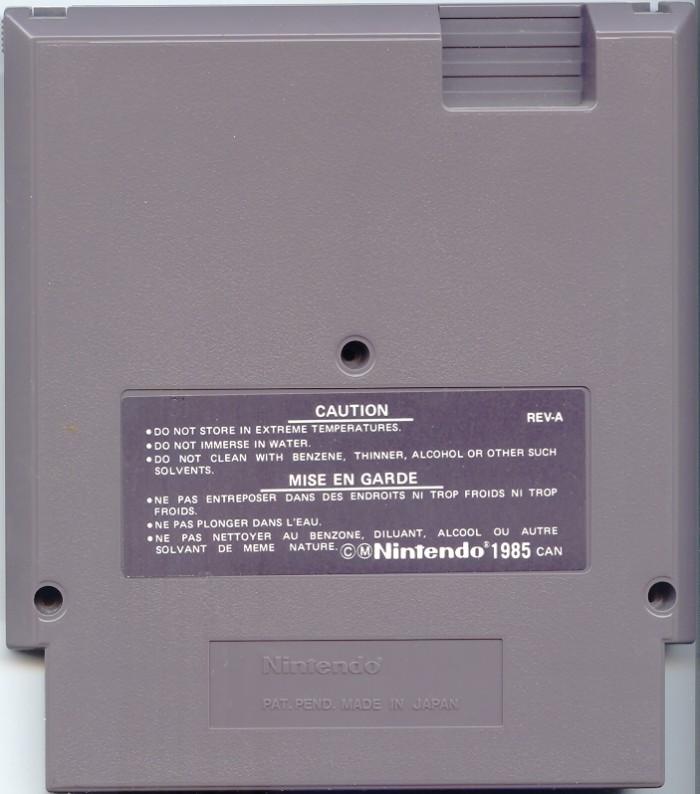

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-EI-CAN |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 01 |

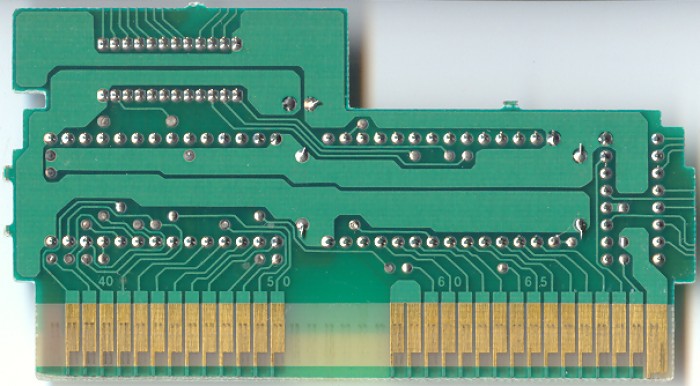

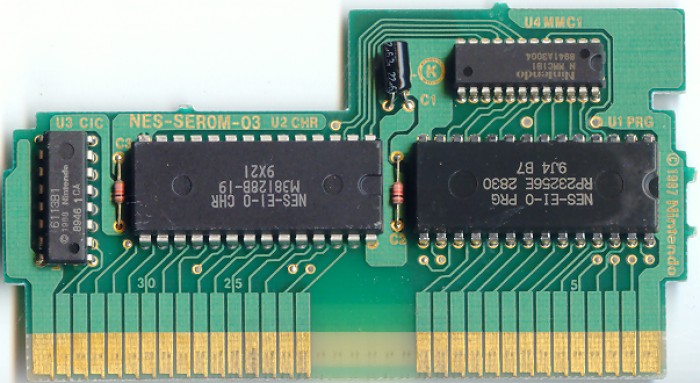

PCB Properties
| Name | NES-SEROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8946 |
| Est First Run | November 1989 |
| PCB Class | NES-SEROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-EI-0 PRG | 32 KB | 943DFBBE | 7 |
| CHR0 | NES-EI-0 CHR | 16 KB | 251AF21C | 11 |
| N/A | ROMs Combined | 48 KB | 1394F57E | 7 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP23256E 2830 | Mask ROM 32 KB | DIP-28 | 9J4 B7 | 8939 | |
| U2 CHR | OKI | M38128B 19 | Mask ROM 16 KB | DIP-28 | 9X 21 | 8939 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8946 1 CA | 8946 | |
| U4 MMC1 | NEC | MMC1B1 | Nintendo MMC1 | DIP-24 | 8941 A3004 | 8941 |
