Release Info
| Catalog ID | AVE-MG |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed » Multi-cart |
| Release Date | 1992 |
| Publisher | AVE |
| Developer | AVE |
| Players | 2 |
| Peripherals | NES Controller |

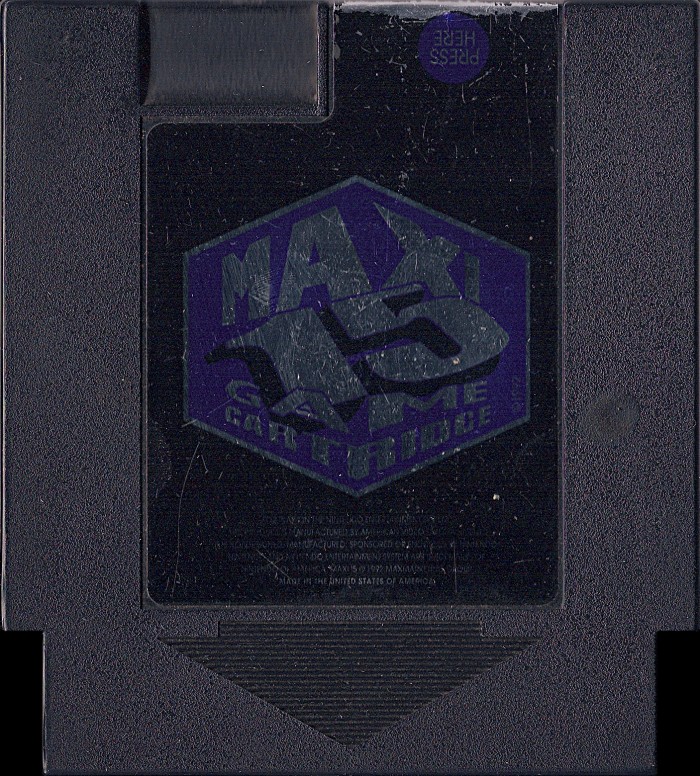

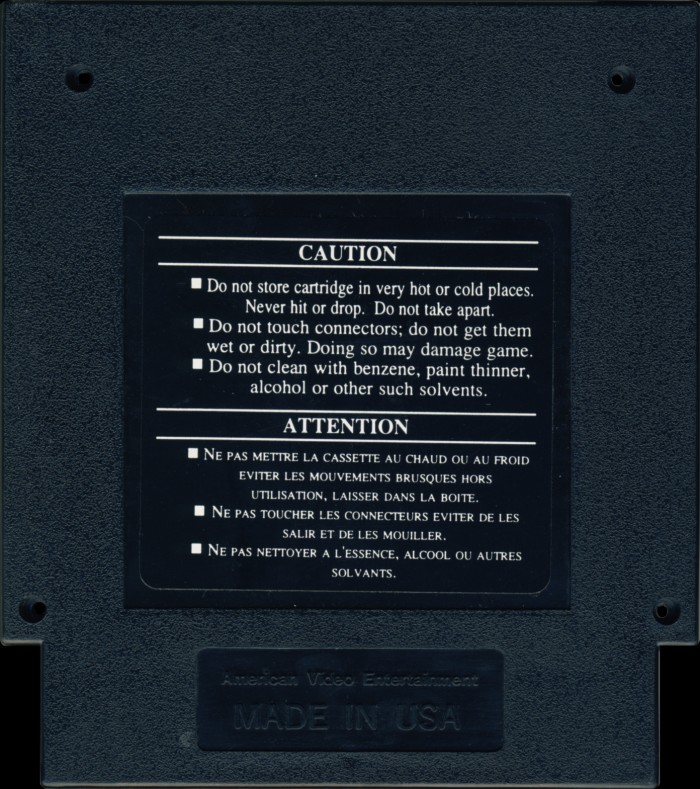

Cart Properties
| Cart Producer | AVE |
|---|---|
| Color | Black |
| Form Factor | Square Corner |
| Embossed Text | American Video Entertainment Made in USA |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

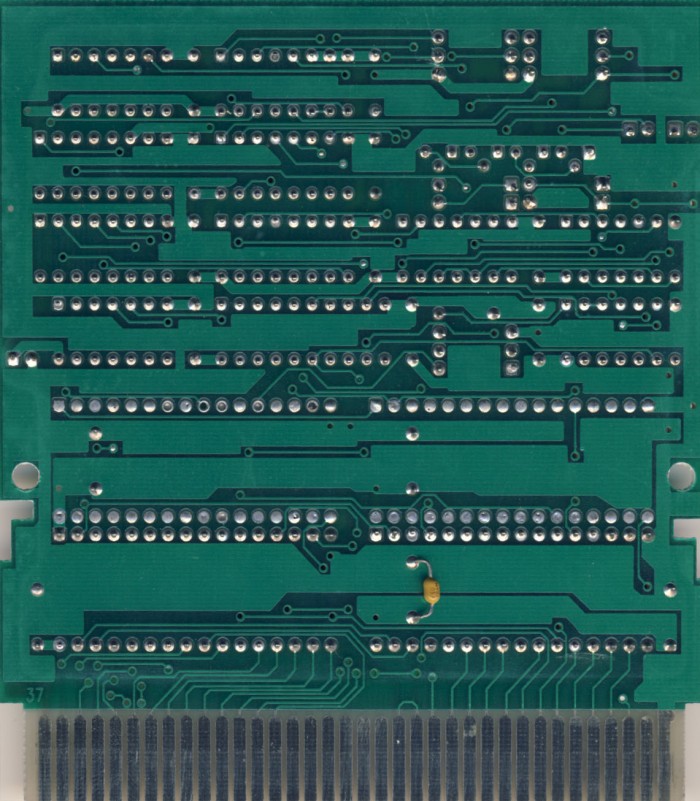

PCB Properties
| Name | D-1012 |
|---|---|
| PCB Producer | AVE |
| Manufacturer | ACL |
| Mfg Range | 9238 - 9240 (2) |
| Est First Run | September 1992 |
| PCB Class | MLT-MAXI15 |
| iNES Mapper | 234 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | CIC Stun |
| Hardware | 4053, 74xx04, 74xx08, 74xx138, 74xx138, 74xx175, 74xx175, 74xx273, 74xx30, 74xx32, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | MGC2-PGM U2-3410 | 512 KB | D81467B4 | 1 |
| CHR0 | MGC2-CHR U9-5436 | 512 KB | B785A710 | 1 |
| N/A | ROMs Combined | 1024 KB | 7EAE9A13 | 1 |

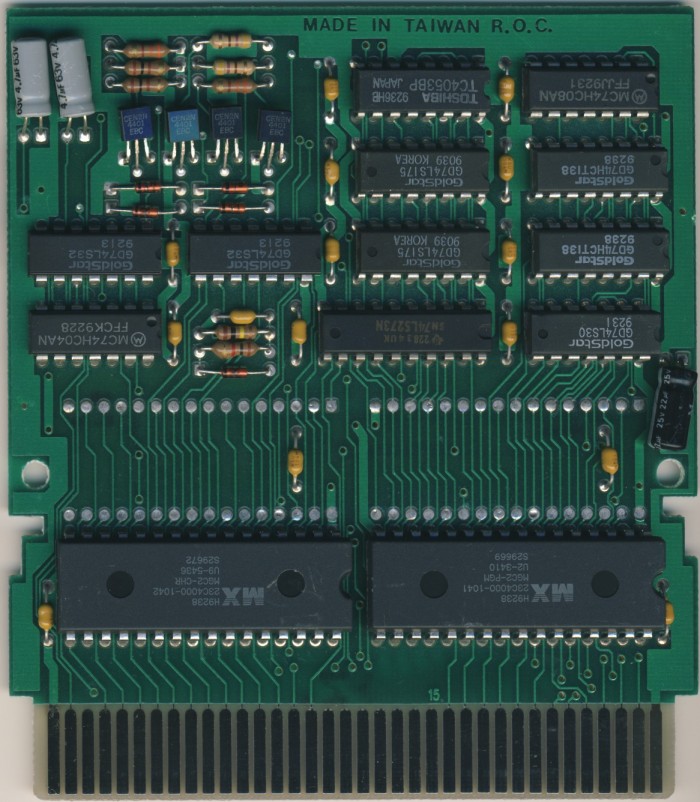

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Macronix | 23C4000 1042 | Mask ROM 512 KB | DIP-32 | 9238 H | 9238 | S29672 | |
| GoldStar | GD74LS175 | 74-175 Series | DIP-16 | 9039 | 9039 | ||
| GoldStar | GD74HCT138 | 74-138 Series | DIP-16 | 9238 | 9238 | ||
| GoldStar | GD74LS175 | 74-175 Series | DIP-16 | 9039 | 9039 | ||
| GoldStar | GD74HCT138 | 74-138 Series | DIP-16 | 9238 | 9238 | ||
| Toshiba | TC4053BP | 4053 | DIP-16 | 9236 HB | 9236 | ||
| Motorola | MC74HC08AN | 74-08 Series | DIP-14 | 9231 FFJJ | 9231 | ||
| Macronix | 23C4000 1041 | Mask ROM 512 KB | DIP-32 | 9238 H | 9238 | S29669 | |
| Motorola | MC74HC04AN | 74-04 Series | DIP-14 | 9228 FFCK | 9228 | ||
| Texas Instruments | SN74LS273N | 74-273 Series | DIP-20 | 228 34UK | 9228 | ||
| GoldStar | GD74LS30 | 74-30 Series | DIP-14 | 9231 | 9231 | ||
| GoldStar | GD74LS32 | 74-32 Series | DIP-14 | 9213 | 9213 | ||
| GoldStar | GD74LS32 | 74-32 Series | DIP-14 | 9213 | 9213 |
