Release Info
| Catalog ID |
AVE-RR |
| Region |
USA (NTSC) |
| Class |
Unlicensed |
| Release Date |
1991 |
| Publisher |
AVE |
| Developer |
Idea-Tek |
| Players |
2 |
| Peripherals |
NES Controller |

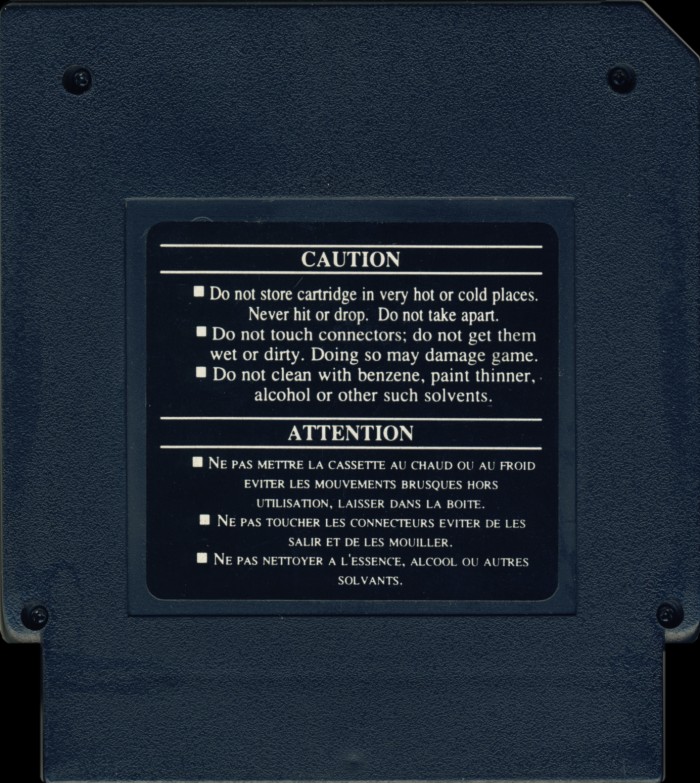

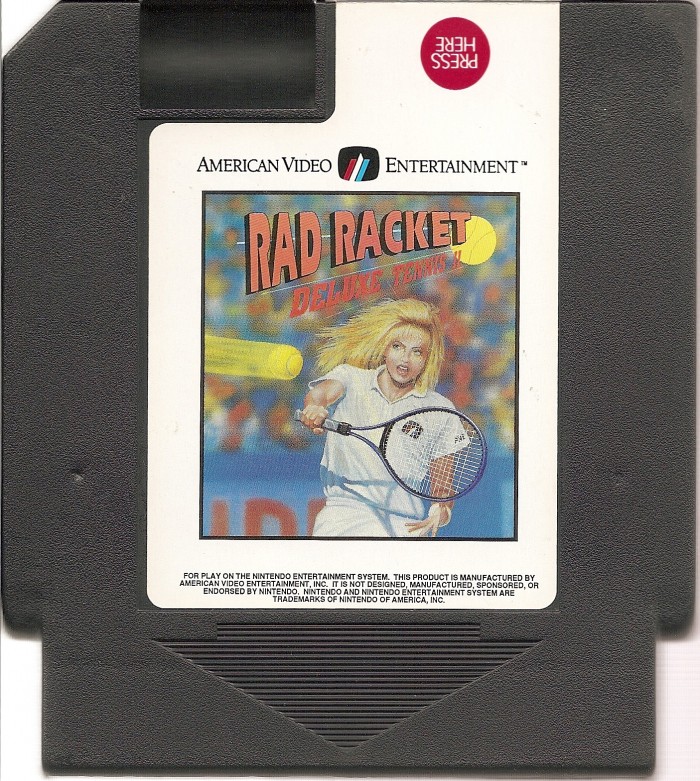

Cart Properties
| Cart Producer |
AVE |
| Color |
Black |
| Form Factor |
Cut Corner |
| Embossed Text |
None |
| Front Label ID |
|
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
|
PCB Properties
| Name |
NINA-06 |
| PCB Producer |
AVE |
| Manufacturer |
ACL |
| Mfg Range |
9144 |
| Est First Run |
November 1991 |
| PCB Class |
AVE-NINA-06 |
| iNES Mapper |
79 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
0 KB |
| CIC Type |
CIC Stun |
| Hardware |
74xx138, 74xx174 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
|
32 KB |
A397028A |
2 |
| CHR0 |
|
32 KB |
DE0853DB |
2 |
| N/A |
ROMs Combined |
64 KB |
BDE7A7B5 |
2 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
Additional Images
PCB Images
