Release Info
| Catalog ID | NES-DE-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | September 1987 |
| Publisher | Br?derbund |
| Developer | Lenar |
| Players | 1 |
| Peripherals | NES Controller |

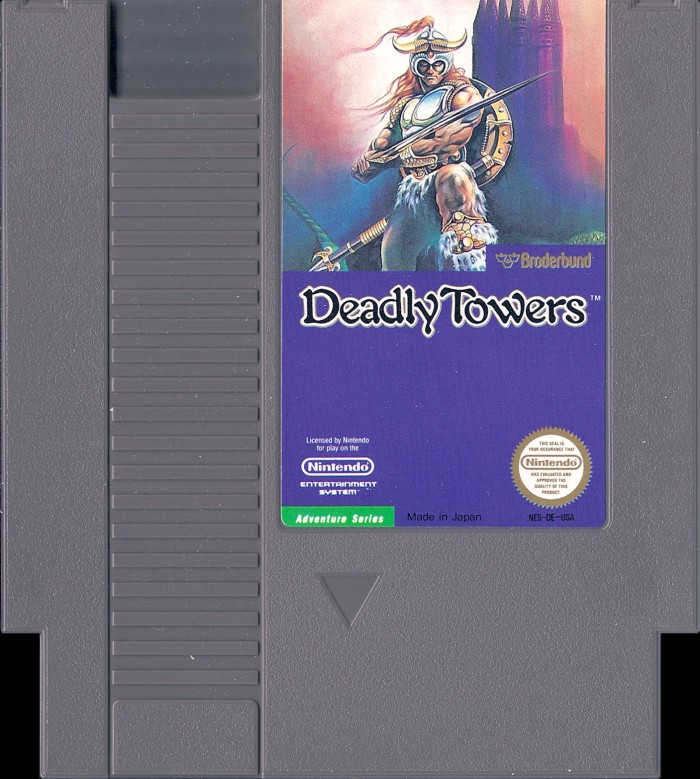

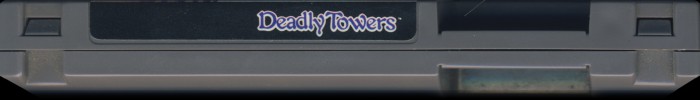

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-DE-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 20 |
PCB Properties
| Name | NES-BN-ROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8730 - 8839 (3) |
| Est First Run | July 1987 |
| PCB Class | NES-BNROM |
| iNES Mapper | 34 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-DE-0 PRG | 128 KB | C2730C30 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Ricoh | RP231024D 0218 | Mask ROM 128 KB | DIP-28 | 7J4 A4 | 8740 | |
| CHR RAM | OKI | M5165-15 | SRAM 8 KB | DIP-28 | 64 082 | 8614 | |
| CIC | Sharp | 6113 | Nintendo CIC | DIP-16 | 8734 C | 8734 | |
| LS161N | Sharp | LR74HC161 | 74-161 Series | DIP-16 | 8723 CA | 8723 |
