Release Info
| Catalog ID | NES-KR-SCN |
|---|---|
| Region | Scandinavia (PAL-B) |
| Class | Licensed |
| Release Date | December 9, 1993 |
| Publisher | Nintendo |
| Developer | HAL Laboratory |
| Players | 1 |
| Peripherals | NES Controller |

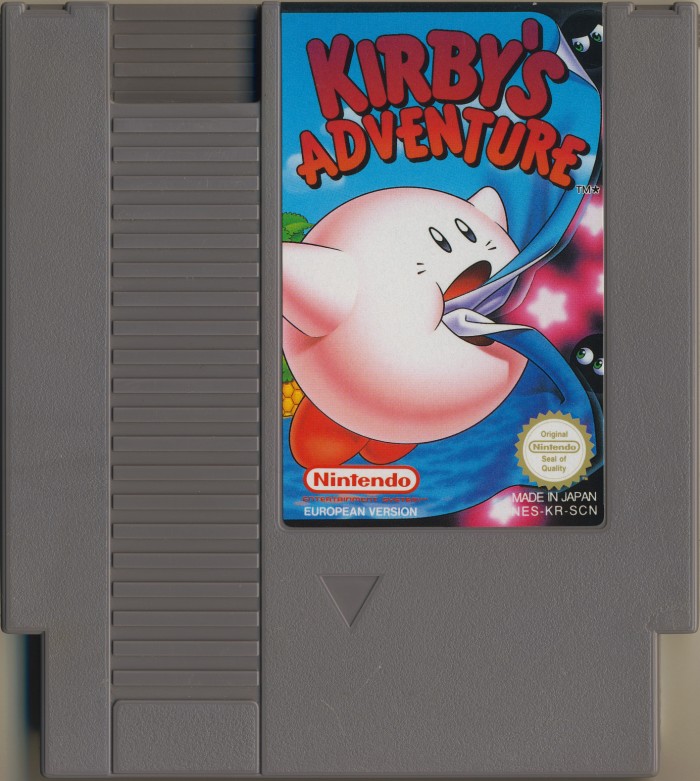

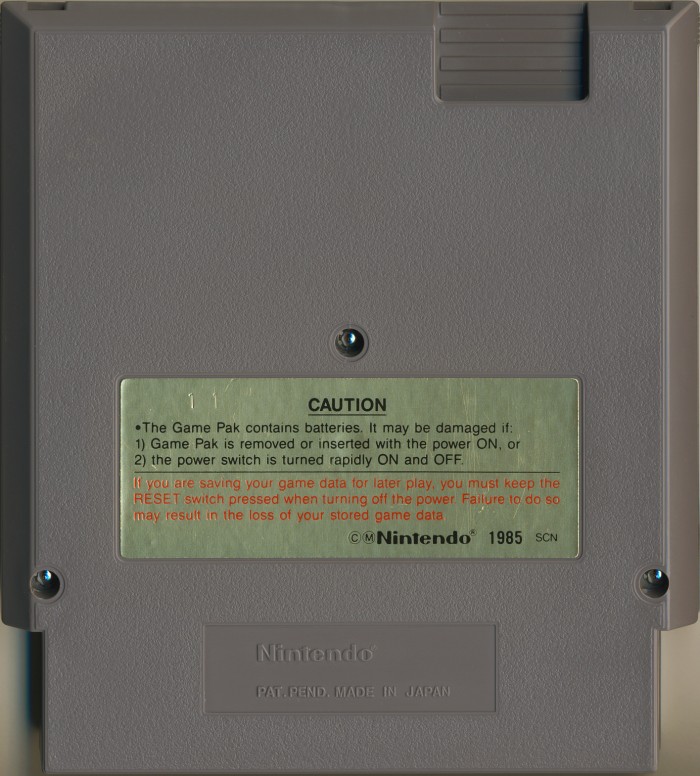

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-KR-SCN |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

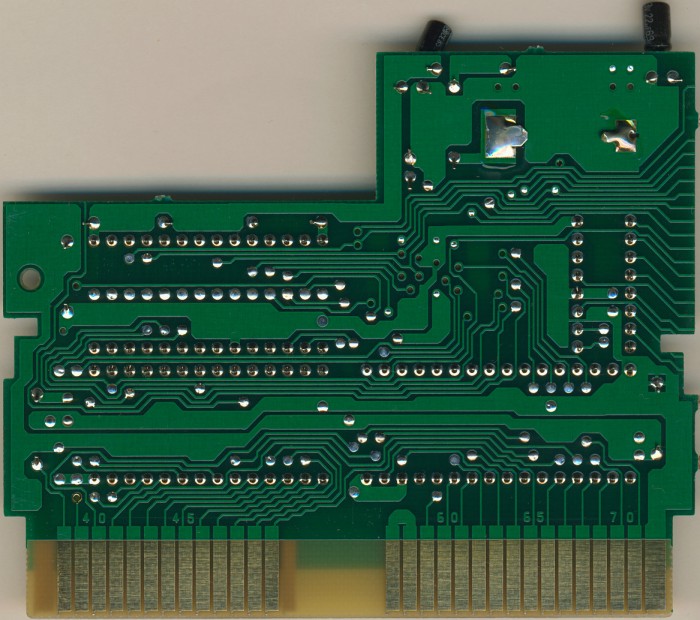

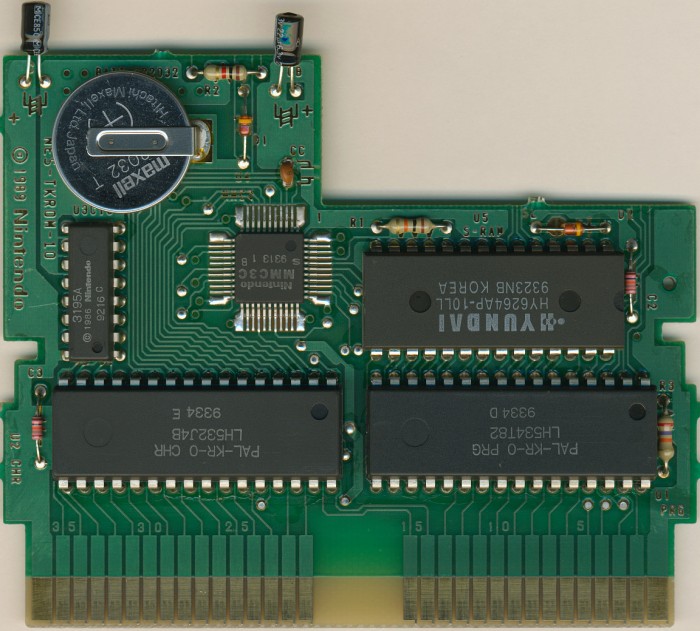

PCB Properties
| Name | NES-TKROM-10 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9334 |
| Est First Run | August 1993 |
| PCB Class | NES-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-KR-0 PRG | 512 KB | 014A755A | 1 |
| CHR0 | PAL-KR-0 CHR | 256 KB | 7EDAE6F3 | 7 |
| N/A | ROMs Combined | 768 KB | 2C088DC5 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH534T 82 | Mask ROM 512 KB | DIP-32 | 9334 D | 9334 | |
| U2 CHR | Sharp | LH532J 4B | Mask ROM 256 KB | DIP-32 | 9334 E | 9334 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9216 C | 9216 | |
| U4 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9313 1 B | 9313 | |
| U5 S-RAM | Hyundai | HY6264AP-10LL | SRAM 8 KB | DIP-28 | 9323 NB | 9323 |
