Release Info
| Catalog ID | NES-CW-NOE |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | September 27, 1993 |
| Publisher | Konami |
| Developer | Novotrade |
| Players | 1 |
| Peripherals | NES Controller |

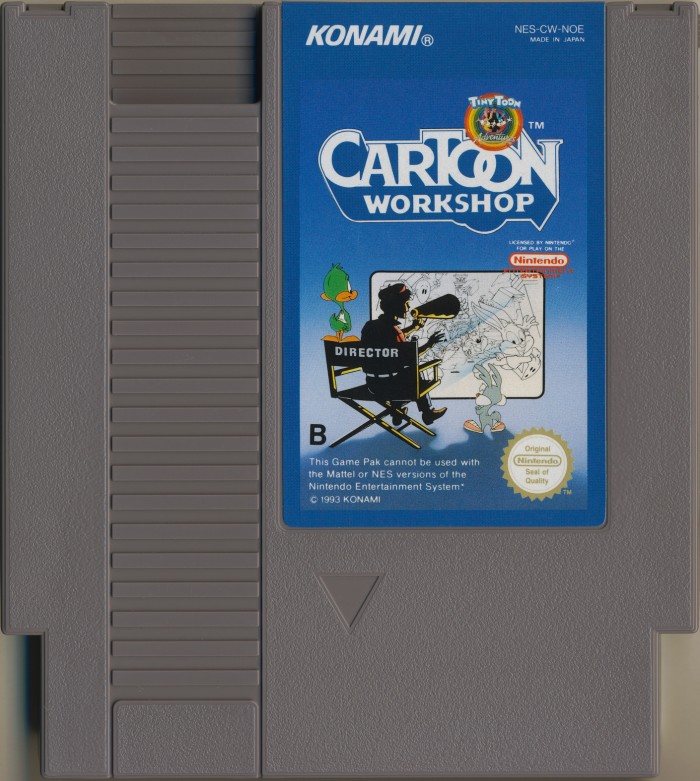

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-CW-NOE |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

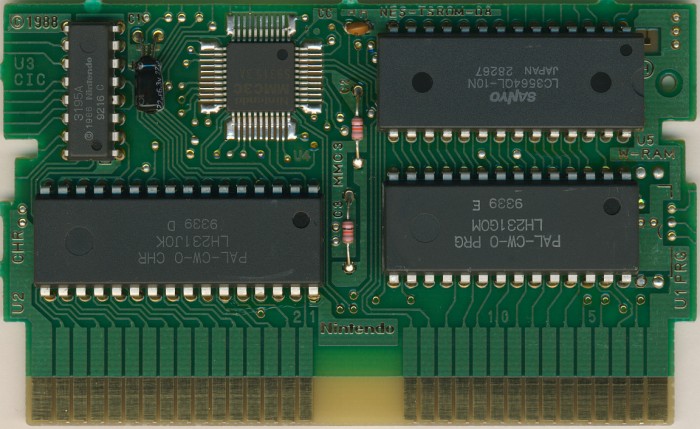

PCB Properties
| Name | NES-TSROM-08 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9339 |
| Est First Run | September 1993 |
| PCB Class | NES-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-CW-0 PRG | 128 KB | 849B06DF | 1 |
| CHR0 | PAL-CW-0 CHR | 128 KB | F2160E9D | 2 |
| N/A | ROMs Combined | 256 KB | C8EBD977 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G 0M | Mask ROM 128 KB | DIP-28 | 9339 E | 9339 | |
| U2 CHR | Sharp | LH231J 0K | Mask ROM 128 KB | DIP-32 | 9339 D | 9339 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9216 C | 9216 | |
| U4 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9315 3 A | 9315 | |
| U5 W-RAM | Sanyo | LC3564QL-10N | SRAM 8 KB | DIP-28 | 28 267 | 9232 |
