Release Info
| Catalog ID | NES-AM-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | April 22, 1989 |
| Publisher | SNK |
| Developer | SNK |
| Players | 1 |
| Peripherals | NES Controller |

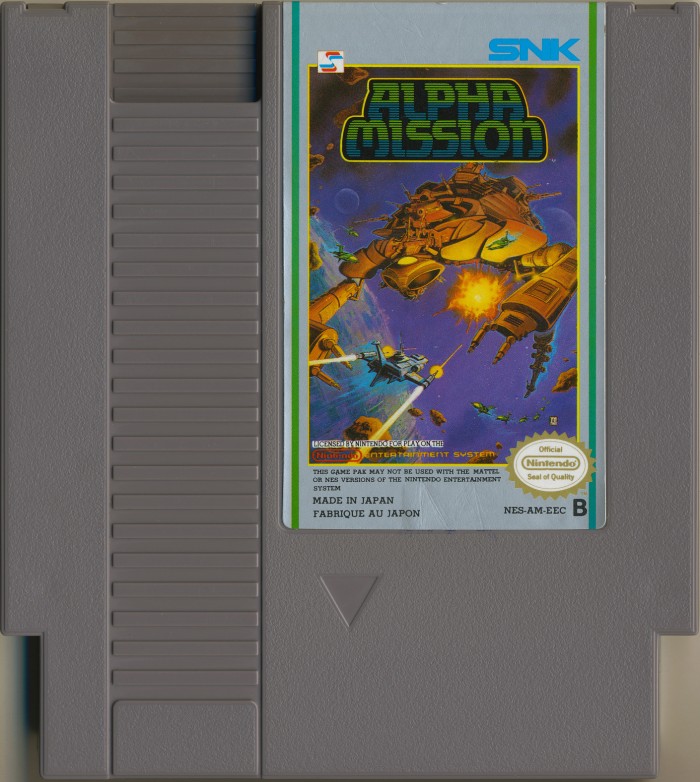

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-AM-EEC |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

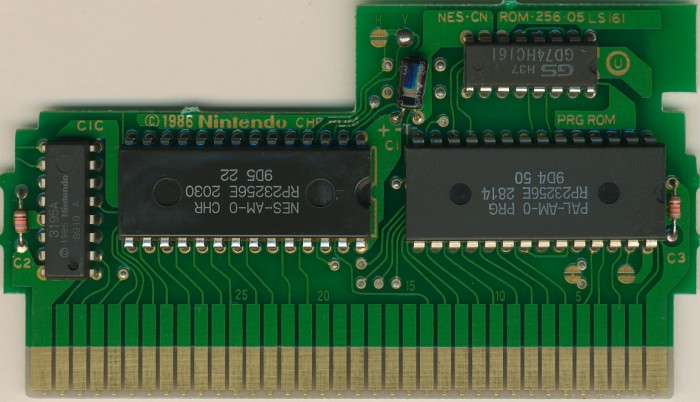

PCB Properties
| Name | NES-CN-ROM-256-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8919 - 8940 (2) |
| Est First Run | May 1989 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-AM-0 PRG | 32 KB | 3F8FCCF9 | 2 |
| CHR0 | NES-AM-0 CHR | 32 KB | A6A1A853 | 5 |
| N/A | ROMs Combined | 64 KB | 976893D2 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Ricoh | RP23256E 2814 | Mask ROM 32 KB | DIP-28 | 9D4 50 | 8917 | |
| CHR ROM | Ricoh | RP23256E 2030 | Mask ROM 32 KB | DIP-28 | 9D5 22 | 8918 | |
| CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8919 A | 8919 | |
| LS161 | GoldStar | GD74HC161 | 74-161 Series | DIP-16 | H37 | 8837 |
