Release Info
| Catalog ID |
CAP-MK |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
June 13, 1986 |
| Publisher |
Capcom |
| Developer |
Capcom |
| Players |
2 |
| Peripherals |
Famicom Controller |

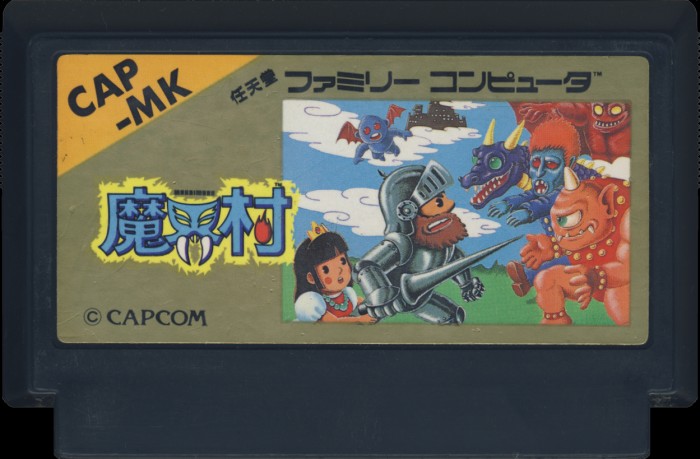

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Black |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
CAP-MK |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
11 |
PCB Properties
| Name |
HVC-UNROM-01 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8619 - 8632 (7) |
| Est First Run |
May 1986 |
| PCB Class |
HVC-UNROM |
| iNES Mapper |
2 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161, 74xx32 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
CAP-MK-0 PRG |
128 KB |
BF3635CF |
7 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| PRG ROM |
Ricoh |
RP231024D
0200
|
Mask ROM
128 KB
|
DIP-28 |
6H1
D4
|
8632 |
|
| CHR RAM |
Sony |
CXK5864P-15
|
SRAM
8 KB
|
DIP-28 |
6F
41
|
8622 |
|
| LS161 |
Toshiba |
TC74HC161P
|
74-161 Series
|
DIP-16 |
8623
H
|
8623 |
|
| LS32 |
Toshiba |
TC74HC32P
|
74-32 Series
|
DIP-14 |
8624
H
|
8624 |
|
Additional Images
PCB Images
