Release Info
| Catalog ID | CAP-19 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 11, 1985 |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 2 |
| Peripherals | Famicom Controller |

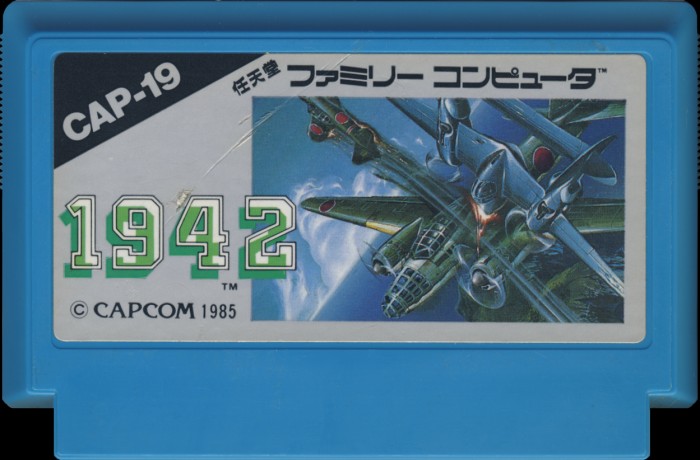

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Ocean Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | CAP-19 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

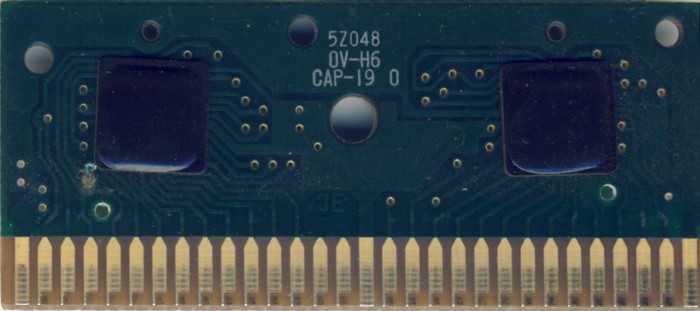

PCB Properties
| Name | 3E |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | OKI |
| Mfg Range | 8548 - 8548 (2) |
| Est First Run | December 1985 |
| PCB Class | HVC-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | C4E8C04A | 4 |
| CHR0 | Not Present | 8 KB | 03379B76 | 4 |
| N/A | ROMs Combined | 40 KB | 171251E3 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | OKI | CAP-19 0 | Chip-on-Board PCB | PCB | 5Z 048 | 8548 | 0V-H6 |
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| __Unknown | EP64 | Bonded ROM 8 KB | EPOXY |
