Release Info
| Catalog ID | DFC-BW |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | June 3, 1986 |
| Publisher | Data East |
| Developer | Data East |
| Players | 2 |
| Peripherals | Famicom Controller |

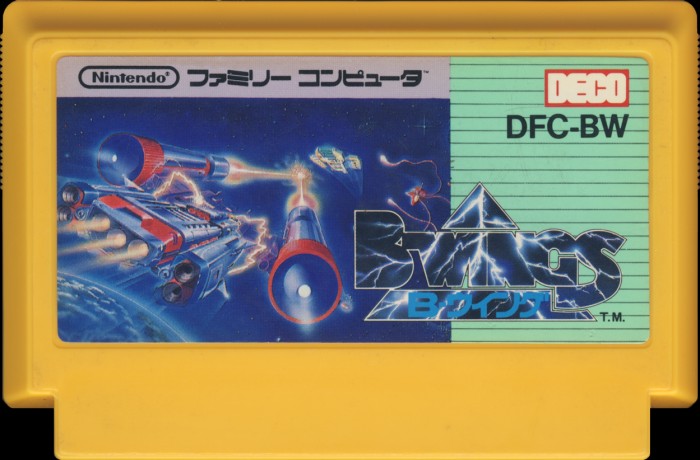

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Light Orange |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | DFC-BW |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 02 |

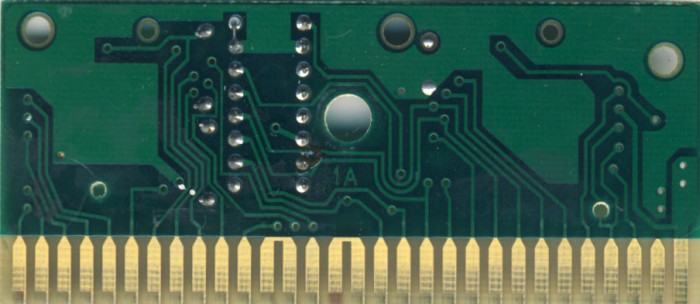

PCB Properties
| Name | 1A |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | OKI |
| Mfg Range | 8618 - 8619 (3) |
| Est First Run | May 1986 |
| PCB Class | HVC-CNROM+SECURITY |
| iNES Mapper | 185 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | 725D5CC4 | 3 |
| CHR0 | Not Present | 8 KB | 456DF683 | 3 |
| N/A | ROMs Combined | 40 KB | 74F0A89F | 3 |

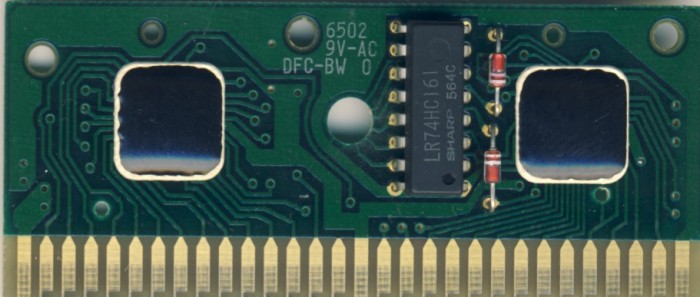

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | OKI | DFC-BW 0 | Chip-on-Board PCB | PCB | 65 02 | 8618 | 9V-AC |
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| __Unknown | EP64 | Bonded ROM 8 KB | EPOXY | ||||
| Sharp | LR74HC161 | 74-161 Series | DIP-16 | 64C 5 | 8617 |
