Release Info
| Catalog ID | NAM-DS-5200 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | April 14, 1989 |
| Publisher | Namco |
| Developer | Namco |
| Players | 1 |
| Peripherals | Famicom Controller |

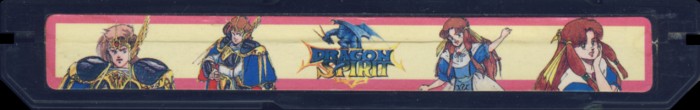

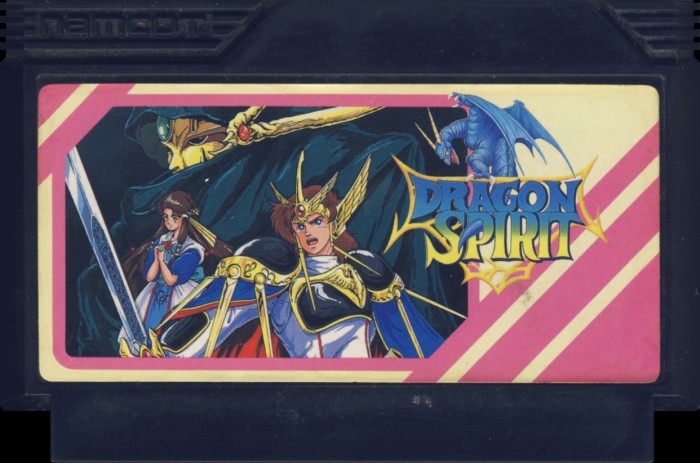

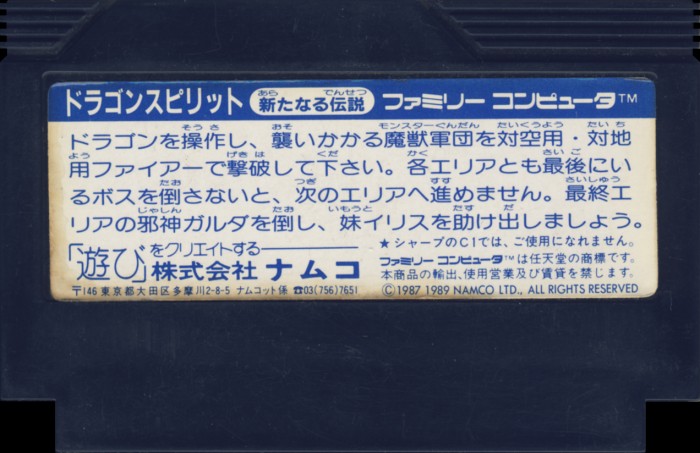

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

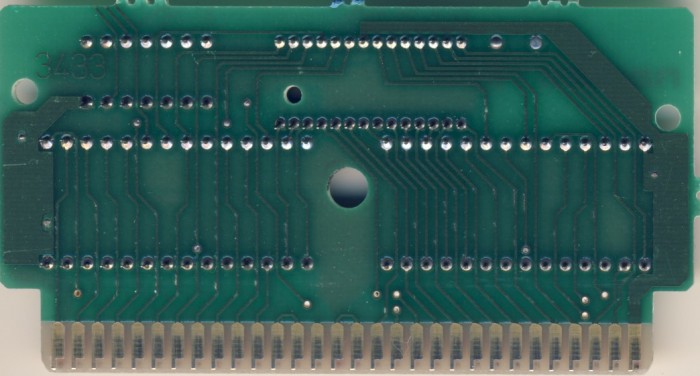

PCB Properties
| Name | 3433 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8909 - 8910 (2) |
| Est First Run | March 1989 |
| PCB Class | NAMCOT-3433 |
| iNES Mapper | 88 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 118, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOTDSPR | 128 KB | 6231E6DF | 2 |
| CHR0 | NAMCOTDSCH | 128 KB | 58216CF2 | 2 |
| N/A | ROMs Combined | 256 KB | D2699893 | 2 |

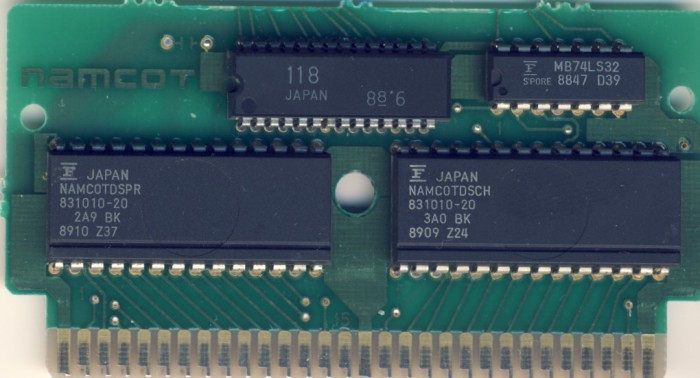

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Fujitsu | 831010-20 2A9 BK | Mask ROM 128 KB | DIP-28 | 8910 Z37 | 8910 | ||
| Fujitsu | 831010-20 3A0 BK | Mask ROM 128 KB | DIP-28 | 8909 Z24 | 8909 | ||
| Panasonic | 118 | Namcot 118 | DIP-28 | 8 | 8834 | ||
| Fujitsu | MB74LS32 | 74-32 Series | DIP-14 | 8847 D39 | 8847 |
