Release Info
| Catalog ID | NAM-NMR-4500 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 10, 1985 |
| Publisher | Namco |
| Developer | Namco |
| Players | 1 |
| Peripherals | Famicom Controller |

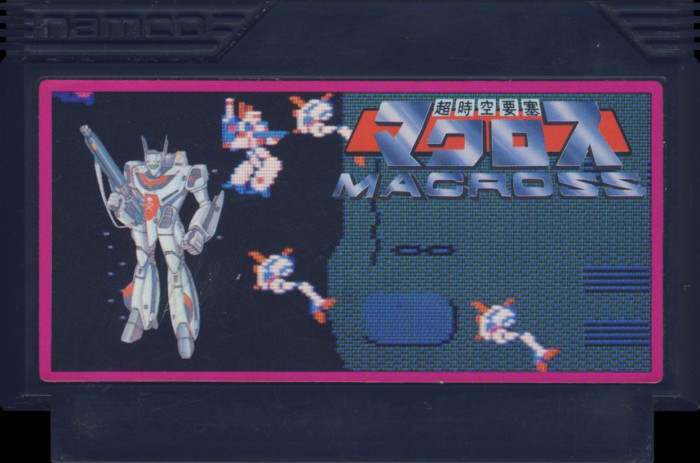

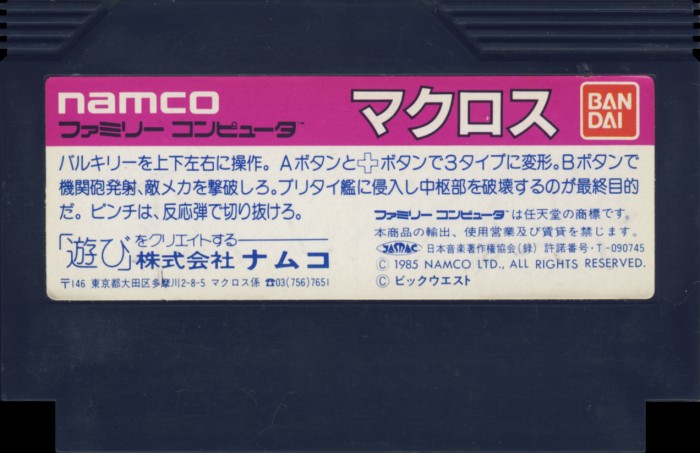

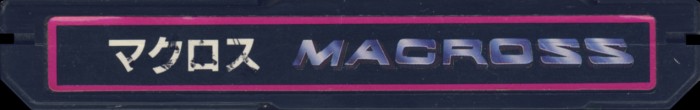

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

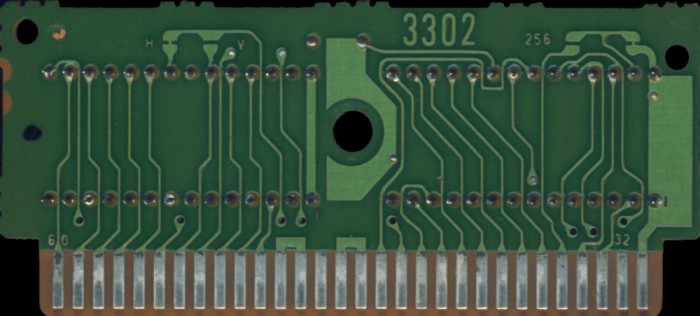

PCB Properties
| Name | 3302 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8544 - 8546 (3) |
| Est First Run | November 1985 |
| PCB Class | NAMCOT-3302 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCO MR PRG | 16 KB | 350BF21B | 3 |
| CHR0 | NAMCO MR CHR | 8 KB | D1E5D796 | 3 |
| N/A | ROMs Combined | 24 KB | C1D7AB1D | 3 |

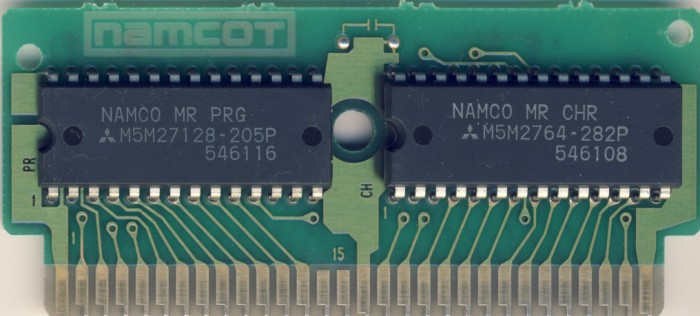

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Mitsubishi | M5M27128 205P | PROM 16 KB | DIP-28 | 546 116 | 8546 | |
| CH | Mitsubishi | M5M2764 282P | PROM 8 KB | DIP-28 | 546 108 | 8546 |
