Release Info
| Catalog ID | JF-26 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 15, 1989 |
| Publisher | Jaleco |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

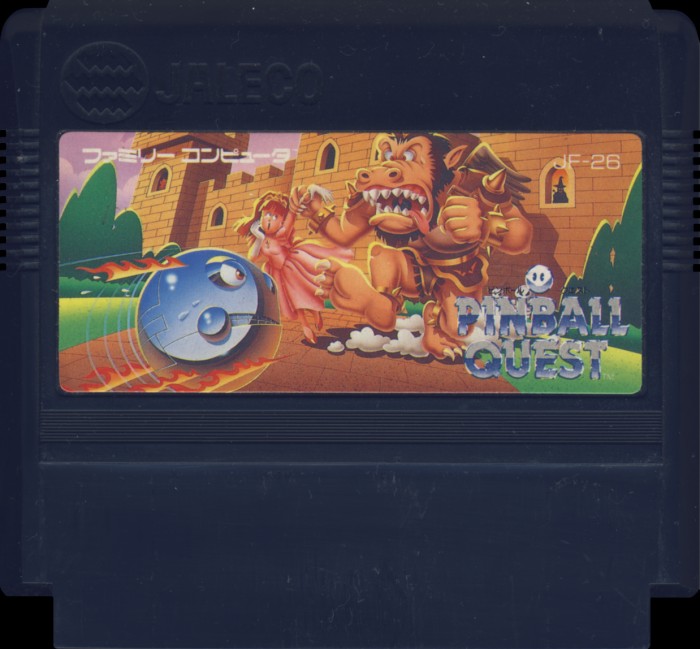

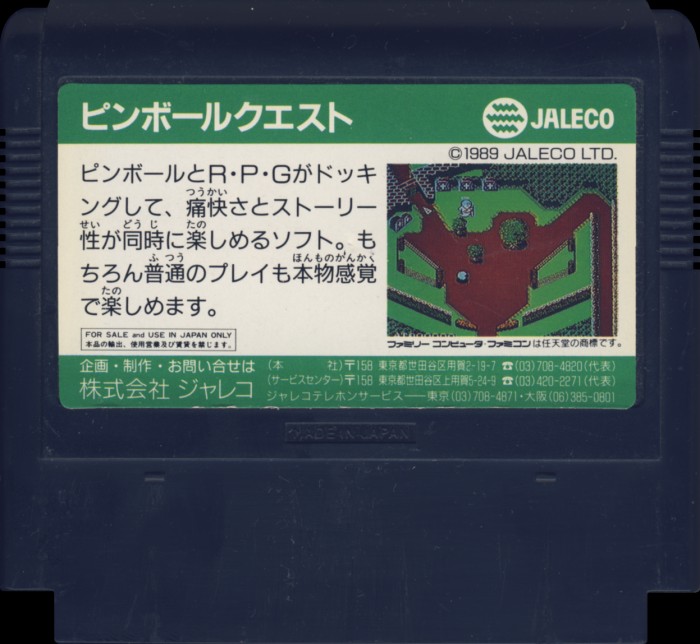

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | Black |
| Form Factor | Large |
| Embossed Text | Made in Japan |
| Front Label ID | JF-26 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

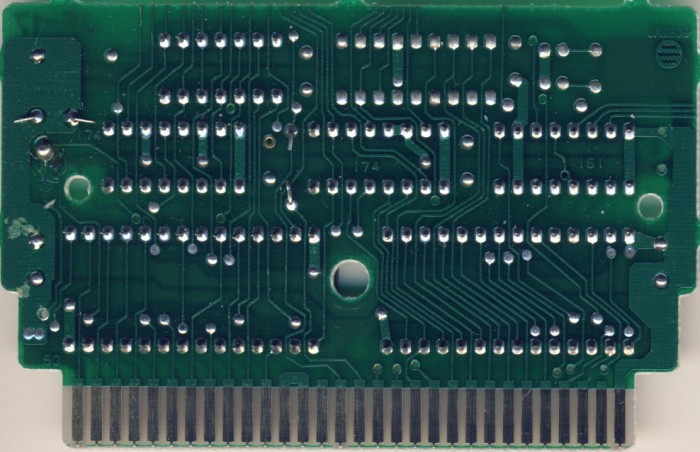

PCB Properties
| Name | JF-17 |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 8945 |
| Est First Run | November 1989 |
| PCB Class | JALECO-JF-17 |
| iNES Mapper | 72 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161, 74xx174, 74xx174, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | MR-89019-PRG | 128 KB | 55C3589C | 1 |
| CHR0 | MR-89019-CHR | 128 KB | 1FCDD252 | 1 |
| N/A | ROMs Combined | 256 KB | 475CDBFE | 1 |

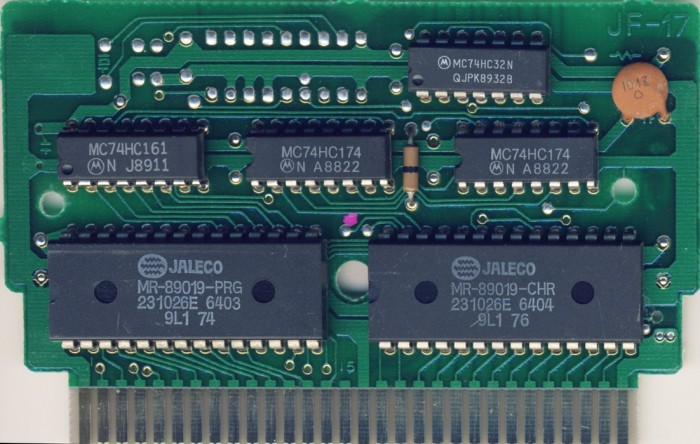

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Ricoh | 231026E 6403 | Mask ROM 128 KB | DIP-28 | 9L1 74 | 8945 | ||
| Ricoh | 231026E 6404 | Mask ROM 128 KB | DIP-28 | 9L1 76 | 8945 | ||
| 161 | Motorola | MC74HC161 | 74-161 Series | DIP-16 | 8911 N J | 8911 | |
| 174 | Motorola | MC74HC174 | 74-174 Series | DIP-16 | 8822 N A | 8822 | |
| 174 | Motorola | MC74HC174 | 74-174 Series | DIP-16 | 8822 N A | 8822 | |
| Motorola | MC74HC32N | 74-32 Series | DIP-14 | 8932 QJPK | 8932 |
