Release Info
| Catalog ID | KON-RC856 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | August 27, 1991 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC856 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

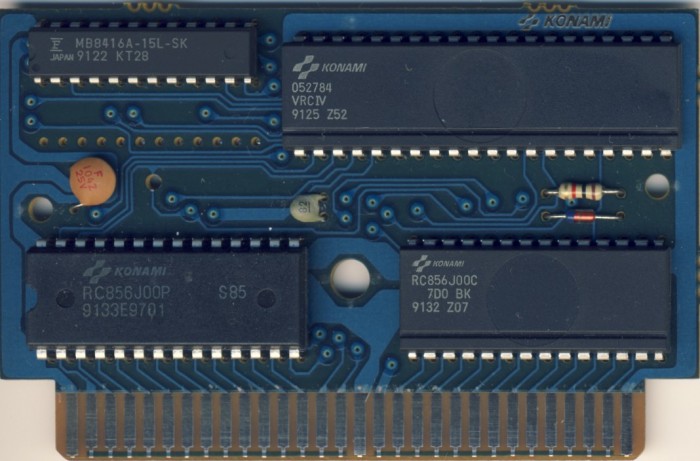

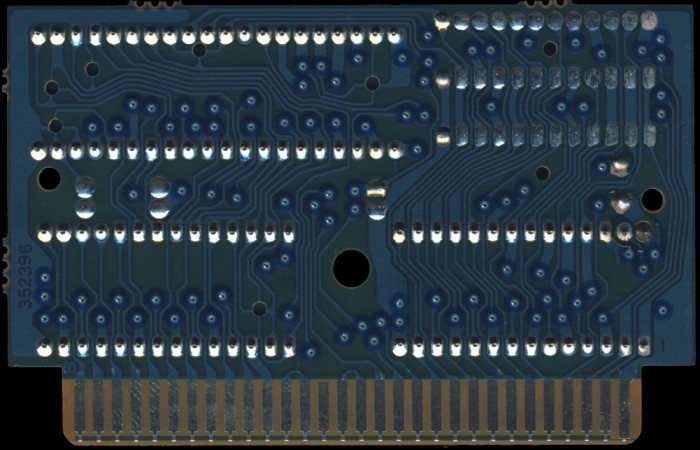

PCB Properties
| Name | 352396 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 9133 |
| Est First Run | August 1991 |
| PCB Class | KONAMI-VRC-4 |
| iNES Mapper | 23 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 2 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | VRC4 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RC856J00P | 128 KB | 99580334 | 1 |
| CHR0 | RC856J00C | 128 KB | A709BCB8 | 1 |
| N/A | ROMs Combined | 256 KB | FCBF28B1 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 9133 E9701 | 9133 | ||
| Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 9132 Z07 | 9132 | ||
| Fujitsu | MB8416A-15L-SK | SRAM 2 KB | SDIP-24 | 9122 KT28 | 9122 | ||
| Fujitsu | 052784 VRC IV | Konami VRC IV | DIP-40 | 9125 Z52 | 9125 |
