Release Info
| Catalog ID | KON-RC828 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | July 15, 1988 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | Famicom Controller |

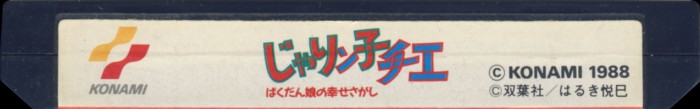

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |

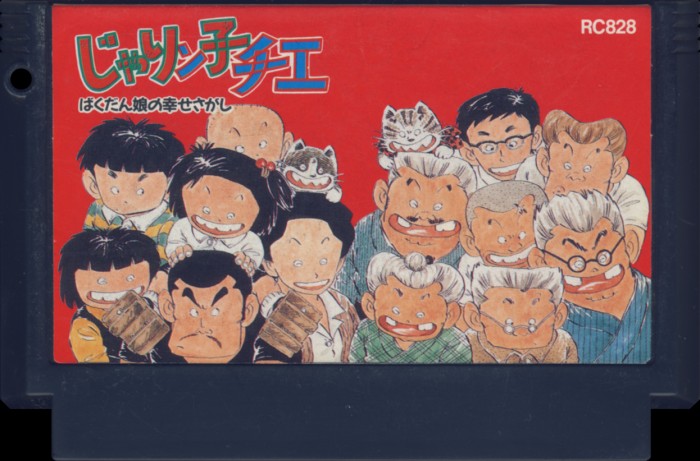

| Front Label ID | RC828 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

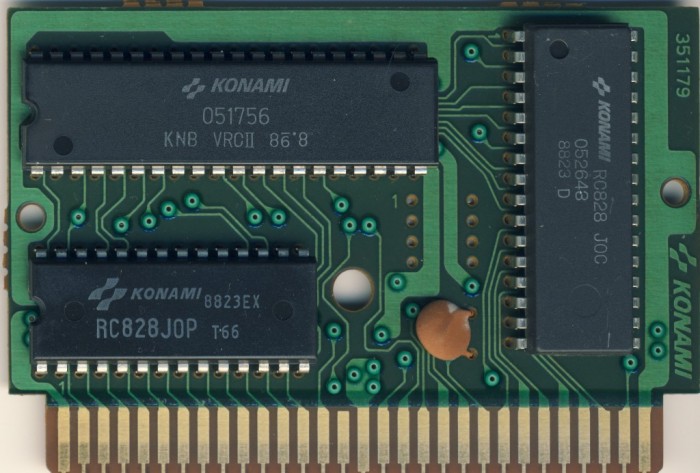

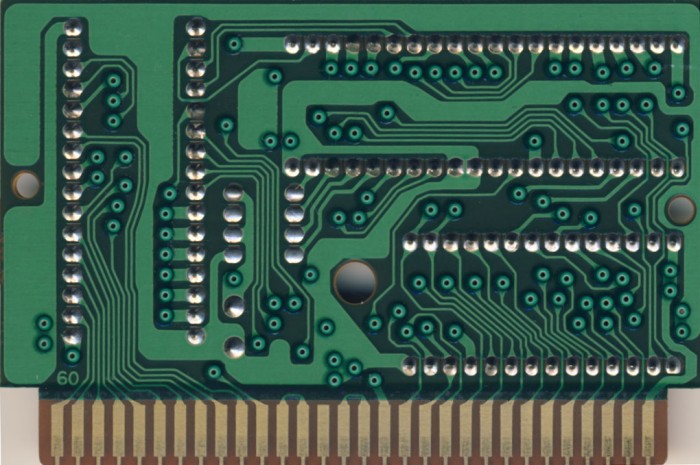

PCB Properties
| Name | 351179 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8823 |
| Est First Run | June 1988 |
| PCB Class | KONAMI-VRC-2 |
| iNES Mapper | 23 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | VRC2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RC828J0P | 128 KB | 5A3EC21C | 1 |
| CHR0 | RC828 J0C | 256 KB | 6C25D16A | 1 |
| N/A | ROMs Combined | 384 KB | 39B68AA3 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8823 EX | 8823 | ||
| Sharp | LH5321 | Mask ROM 256 KB | DIP-32 | 8823 D | 8823 | ||
| Panasonic | 051756 VRC II KNB | Konami VRC II | DIP-40 | 8 | 8823 |
