Release Info
| Catalog ID | KON-RC850 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | January 5, 1991 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | Famicom Controller |

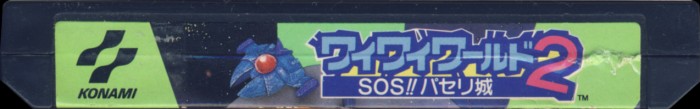

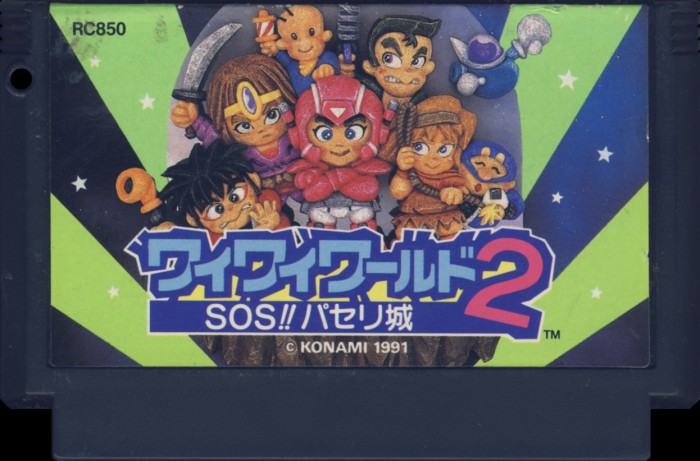

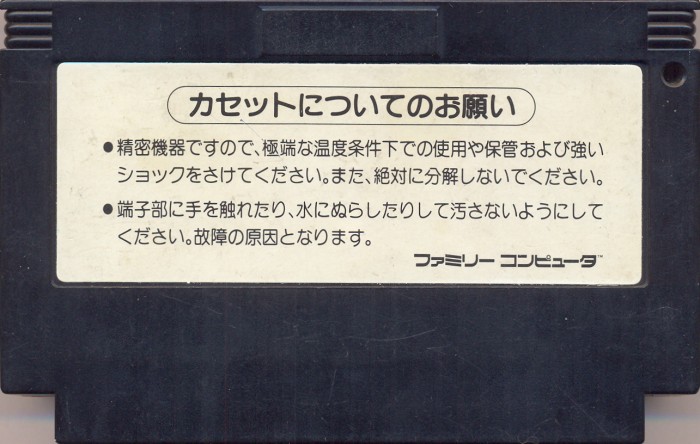

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC850 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

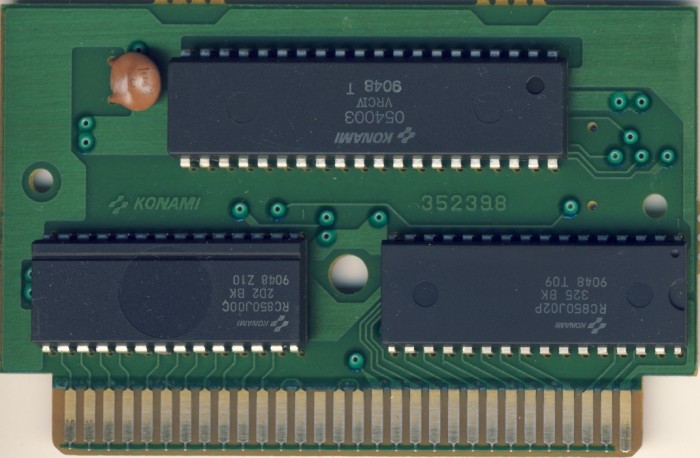

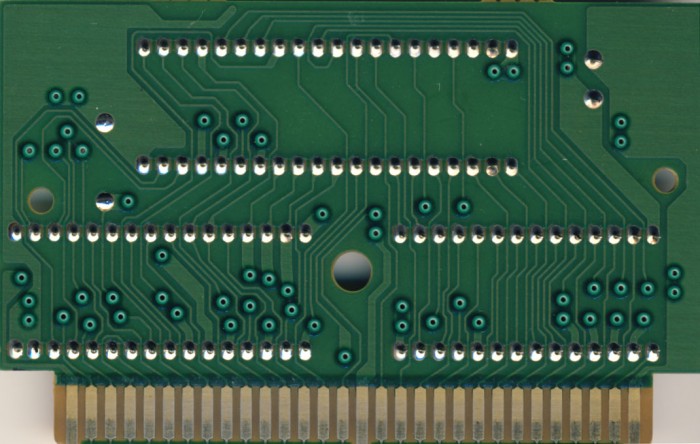

PCB Properties
| Name | 352398 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 9048 |
| Est First Run | December 1990 |
| PCB Class | KONAMI-VRC-4 |
| iNES Mapper | 21 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | VRC4 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RC850J02P | 256 KB | B201B522 | 1 |
| CHR0 | RC850J00C | 128 KB | 75754679 | 1 |
| N/A | ROMs Combined | 384 KB | 8B03F74D | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Fujitsu | MB832000 | Mask ROM 256 KB | DIP-32 | 9048 T09 | 9048 | ||
| Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 9048 Z10 | 9048 | ||
| Sharp | 054003 VRC IV | Konami VRC IV | DIP-40 | 9048 T | 9048 |
