Release Info
| Catalog ID | KON-RC802 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | April 22, 1985 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | Famicom Controller |

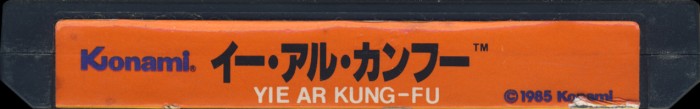

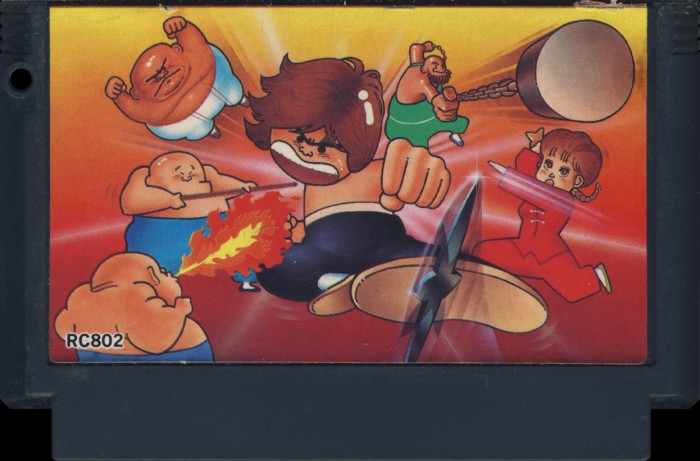

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC802 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

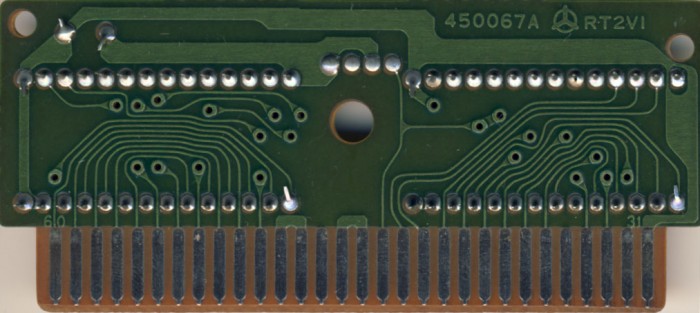

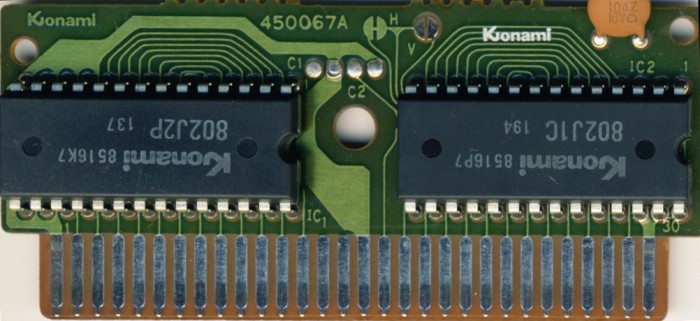

PCB Properties
| Name | 450067A |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8450 - 8516 (2) |
| Est First Run | December 1984 |
| PCB Class | KONAMI-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 802J2P | 16 KB | 8F7719F3 | 1 |
| CHR0 | 802J1C | 8 KB | FD4872FC | 2 |
| N/A | ROMs Combined | 24 KB | 8BAA5FF2 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 | NEC | UPD23C128 | Mask ROM 16 KB | DIP-28 | 8516 K7 | 8516 | |
| IC2 | NEC | UPD23C64 | Mask ROM 8 KB | DIP-28 | 8516 P7 | 8516 |
