Release Info
| Catalog ID | KON-RC804 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | April 22, 1985 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | Famicom Controller |

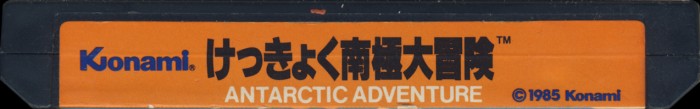

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |

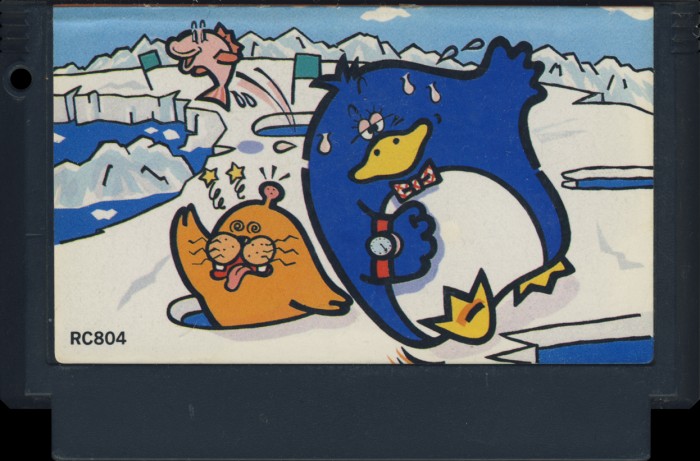

| Front Label ID | RC804 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

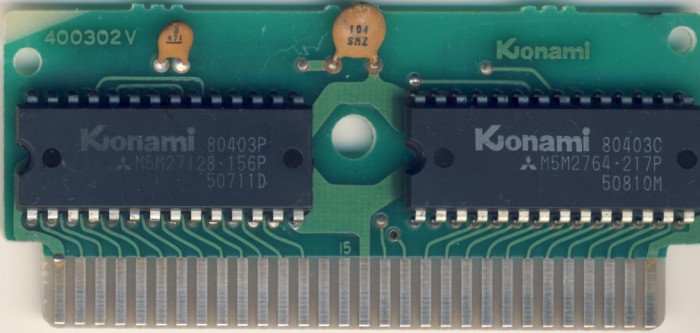

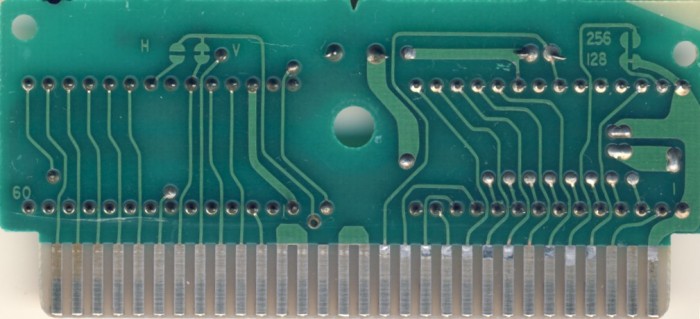

PCB Properties
| Name | 400302V |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8508 - 8541 (5) |
| Est First Run | February 1985 |
| PCB Class | KONAMI-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 80403P | 16 KB | DF189D34 | 4 |
| CHR0 | 80403C | 8 KB | E03540CD | 4 |
| N/A | ROMs Combined | 24 KB | 163ECCAE | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Mitsubishi | M5M27128 156P | PROM 16 KB | DIP-28 | 507 11D | 8507 | ||
| Mitsubishi | M5M2764 217P | PROM 8 KB | DIP-28 | 508 10M | 8508 |
