Release Info
| Catalog ID | SUN-MK-5300 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | August 11, 1987 |
| Publisher | Sunsoft |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

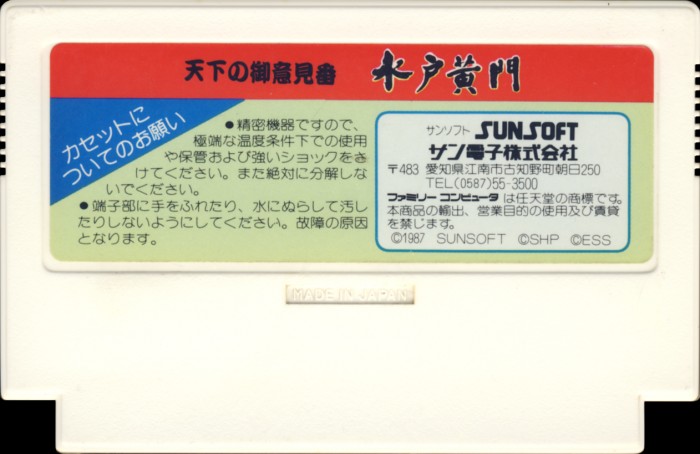

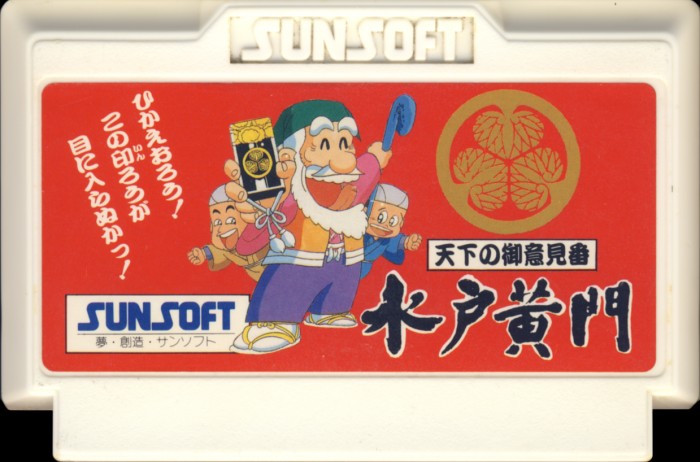

Cart Properties
| Cart Producer | Sunsoft |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

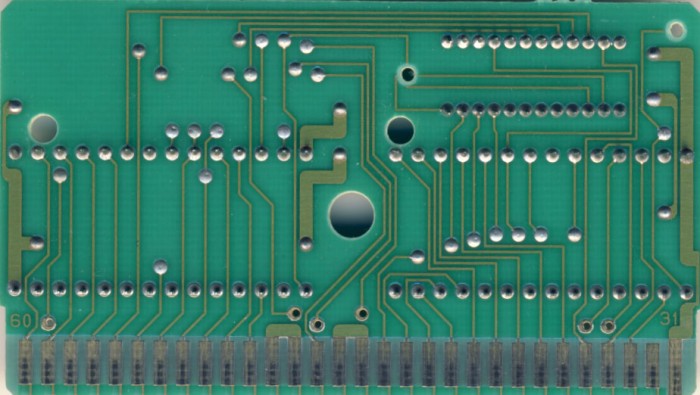

PCB Properties
| Name | SUNSOFT-3 |
|---|---|
| PCB Producer | Sunsoft |
| Manufacturer | Not Specified |
| Mfg Range | 8731 - 8741 (3) |
| Est First Run | August 1987 |
| PCB Class | SUNSOFT-2 |
| iNES Mapper | 89 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | Sunsoft-2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SUNSOFT-7 PRG | 128 KB | 3BF38115 | 3 |
| CHR0 | SUNSOFT-7 CHR | 128 KB | 106F9379 | 3 |
| N/A | ROMs Combined | 256 KB | 21F8C4AB | 3 |

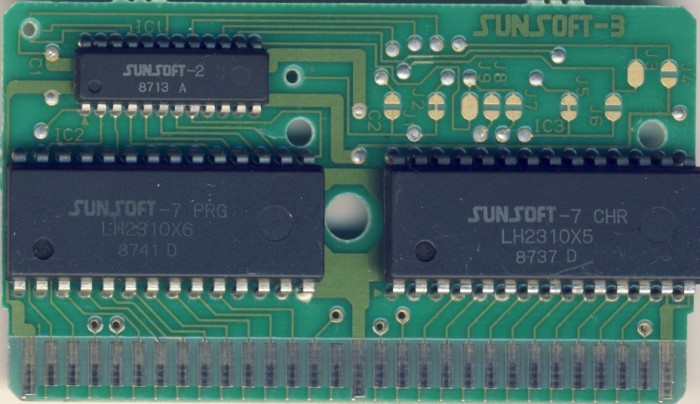

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 | Sharp | SUNSOFT-2 | Sunsoft-2 | DIP-24 | 8713 A | 8713 | |
| IC2 | Sharp | LH2310 X6 | Mask ROM 128 KB | DIP-28 | 8741 D | 8741 | |
| IC3 | Sharp | LH2310 X5 | Mask ROM 128 KB | DIP-28 | 8737 D | 8737 |
