Release Info
| Catalog ID | IF-09 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | March 18, 1988 |
| Publisher | Irem |
| Developer | Lenar |
| Players | 1 |
| Peripherals | Famicom Controller |

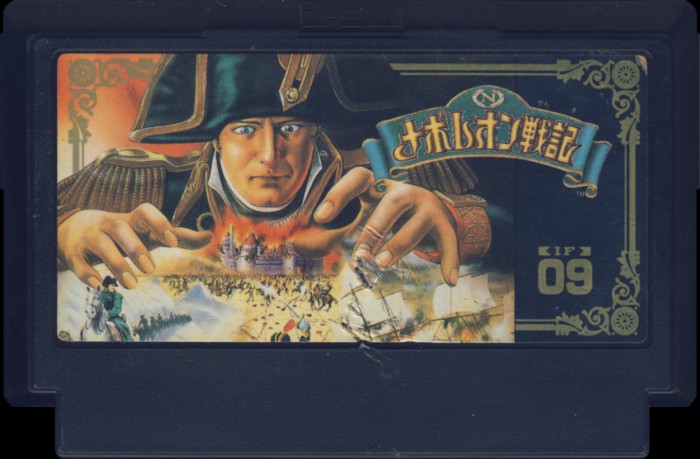

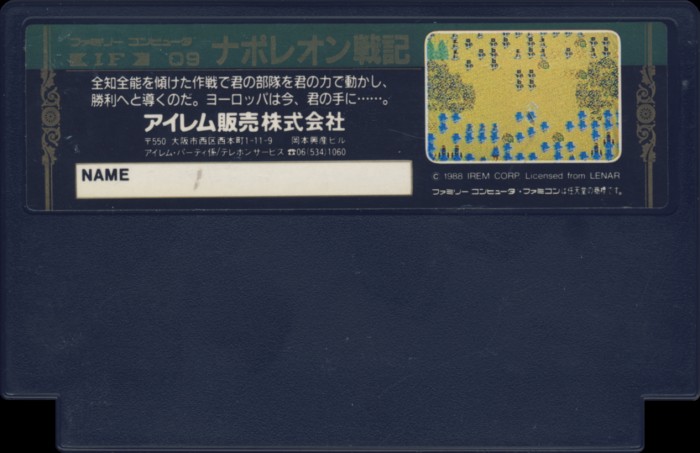

Cart Properties
| Cart Producer | Irem |
|---|---|
| Color | Black |
| Form Factor | New Style |
| Embossed Text | |
| Front Label ID | IF-09 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

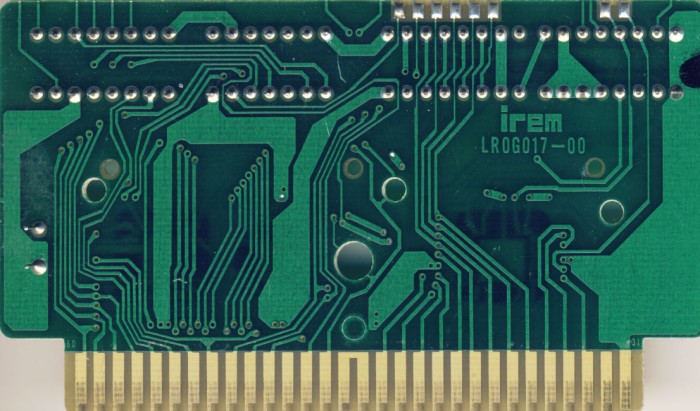

PCB Properties
| Name | LROG017-00 |
|---|---|
| PCB Producer | Irem |
| Manufacturer | Sharp |
| Mfg Range | 8810 |
| Est First Run | March 1988 |
| PCB Class | IREM-74*161/161/21/138 |
| iNES Mapper | 77 |
| Mirroring | Four Screen |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | 74xx138, 74xx161, 74xx161, 74xx21 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | ADB47286 | 1 |
| CHR0 | Not Present | 32 KB | F822DD8D | 1 |
| N/A | ROMs Combined | 160 KB | 06144B4A | 1 |

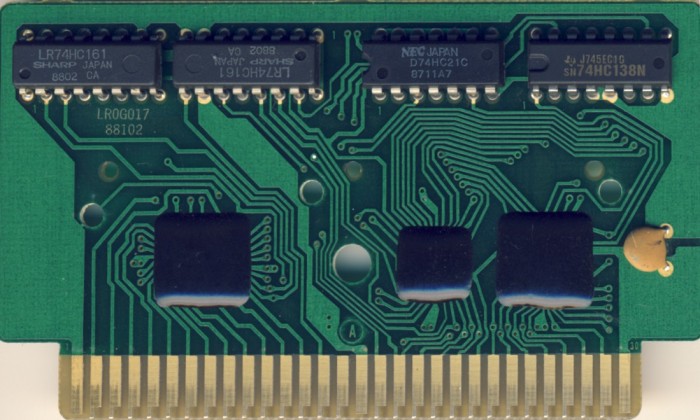

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | Sharp | LROG017 | Chip-on-Board PCB | PCB | 8810 2 | 8810 | |
| __Unknown | EP1000 | Bonded ROM 128 KB | EPOXY | ||||
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| __Unknown | EP6264 | SRAM 8 KB | EPOXY | ||||
| Sharp | LR74HC161 | 74-161 Series | DIP-16 | 8802 CA | 8802 | ||
| Sharp | LR74HC161 | 74-161 Series | DIP-16 | 8802 CA | 8802 | ||
| NEC | D74HC21C | 74-21 Series | DIP-14 | 8711 A7 | 8711 | ||
| Texas Instruments | SN74HC138N | 74-138 Series | DIP-16 | 745 J | 8745 |
