Release Info
| Catalog ID |
IF-05 |
| Region |
Japan (NTSC) |
| Class |
Licensed » 3rd-Party |
| Release Date |
December 15, 1986 |
| Publisher |
Irem |
| Developer |
Lenar |
| Players |
1 |
| Peripherals |
Famicom Controller |

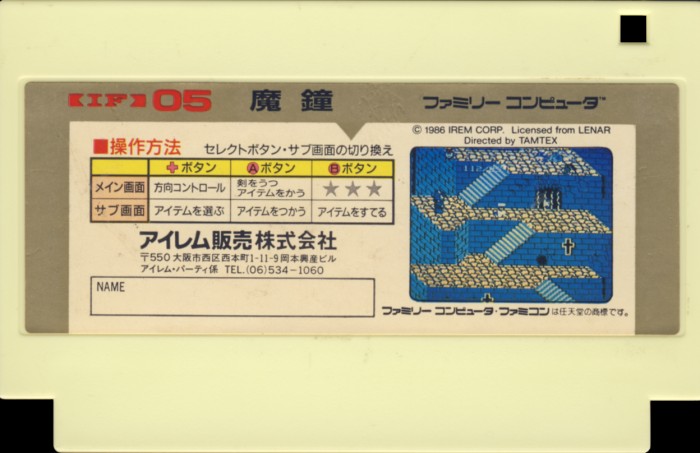

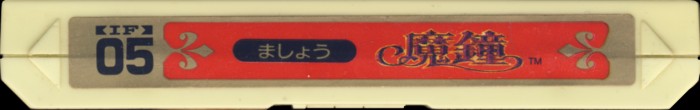

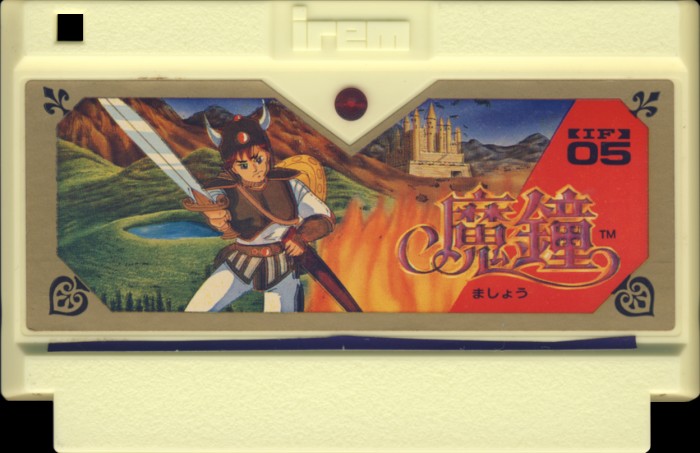

Cart Properties
| Cart Producer |
Irem |
| Color |
Off White |
| Form Factor |
Original w/ LED |
| Embossed Text |
|
| Front Label ID |
IF-05 |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
|
PCB Properties
| Name |
IREM-I-IM |
| PCB Producer |
Irem |
| Manufacturer |
Not Specified |
| Mfg Range |
8644 |
| Est First Run |
November 1986 |
| PCB Class |
IREM-BNROM |
| iNES Mapper |
34 |
| Mirroring |
Horizontal |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
IREM-MS |
128 KB |
A21E675C |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
|
Sony |
CXK381000
003
|
Mask ROM
128 KB
|
DIP-28 |
6K
16
|
8644 |
|
|
Sony |
CXK5864PN-15
|
SRAM
8 KB
|
DIP-28 |
5K
10
|
8544 |
|
|
Hitachi |
HD74LS161P
|
74-161 Series
|
DIP-16 |
6H2
1
|
8633 |
|
