Release Info
| Catalog ID | TFC-ANII-5900-16 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | March 8, 1988 |
| Publisher | Taito |
| Developer | Taito |
| Players | 1 |
| Peripherals | Famicom Controller |

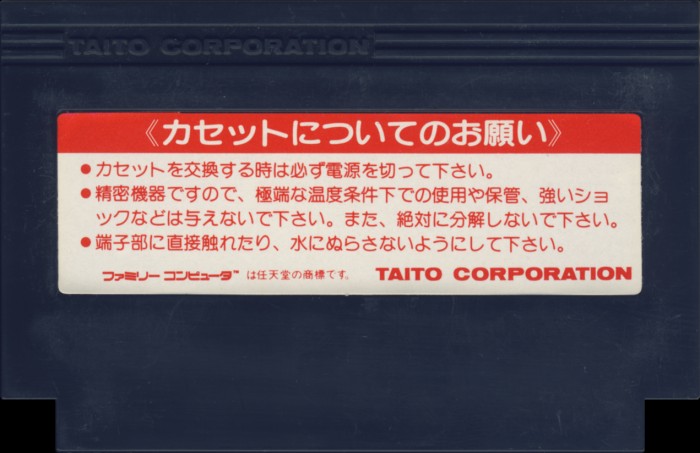

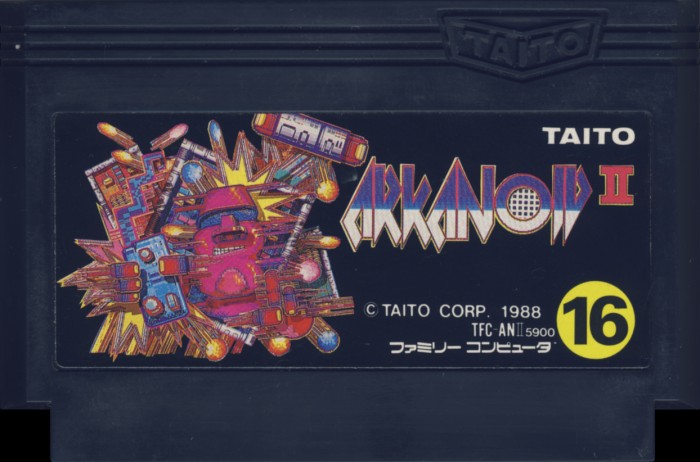

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Short Label / Logo 1 / 2 Screws |
| Embossed Text | |
| Front Label ID | TFC-ANII5900 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

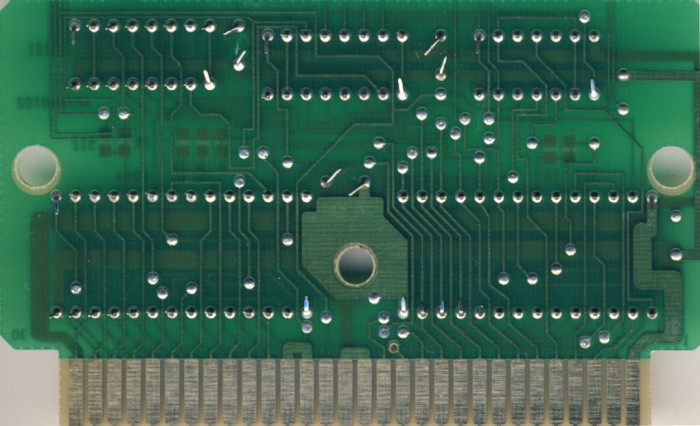

PCB Properties
| Name | ARKANOID2 |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 8808 |
| Est First Run | February 1988 |
| PCB Class | TAITO-74*161/161/32 |
| iNES Mapper | 152 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161, 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 64 KB | 6267FBD1 | 1 |
| CHR0 | Not Present | 128 KB | 7D66D22D | 1 |
| N/A | ROMs Combined | 192 KB | 0F141525 | 1 |

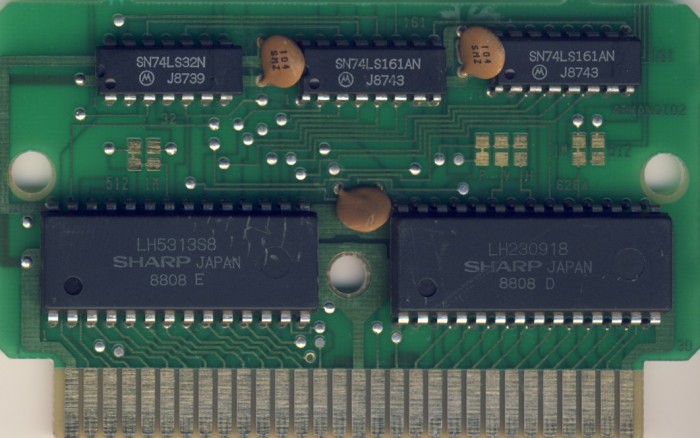

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Sharp | LH5313 S8 | Mask ROM 64 KB | DIP-28 | 8808 E | 8808 | |
| CH | Sharp | LH2309 18 | Mask ROM 128 KB | DIP-28 | 8808 D | 8808 | |
| 32 | Motorola | SN74LS32N | 74-32 Series | DIP-14 | 8739 J | 8739 | |
| 161 | Motorola | SN74LS161AN | 74-161 Series | DIP-16 | 8743 J | 8743 | |
| 161 | Motorola | SN74LS161AN | 74-161 Series | DIP-16 | 8743 J | 8743 |
