Release Info
| Catalog ID | BA-ZG |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | August 28, 1986 |
| Publisher | Bandai |
| Developer | Game Studio |
| Players | 1 |
| Peripherals | Famicom Controller |

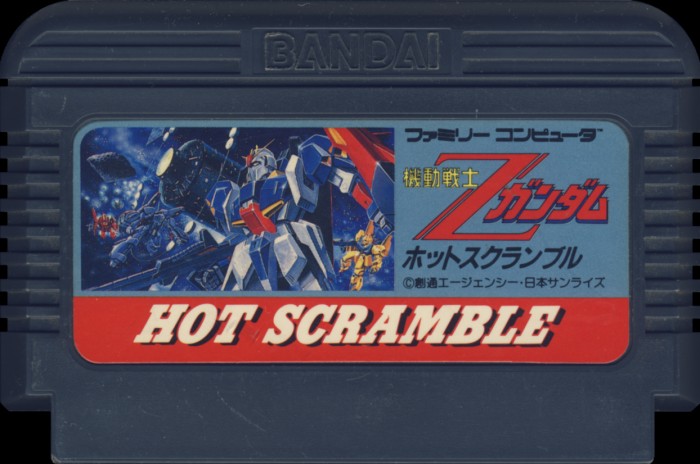

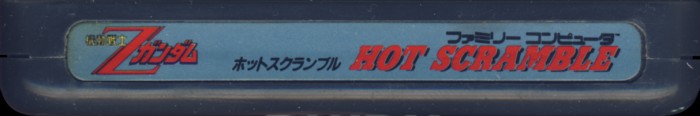

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

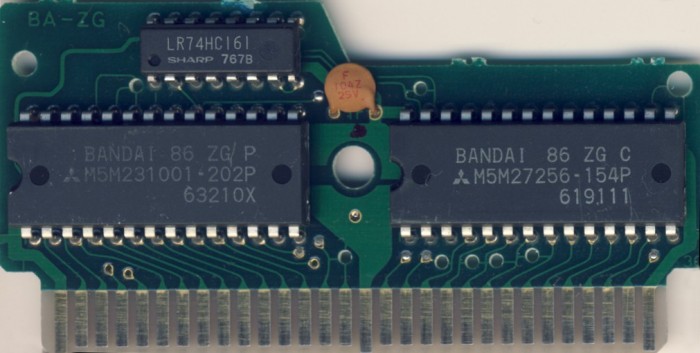

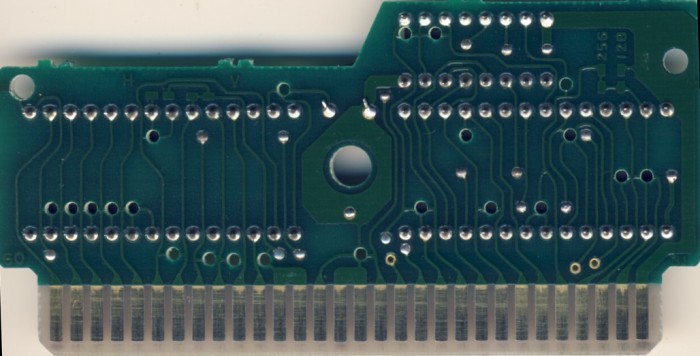

PCB Properties
| Name | BA-ZG |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8632 - 8632 (3) |
| Est First Run | August 1986 |
| PCB Class | BANDAI-GNROM |
| iNES Mapper | 66 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BANDAI 86 ZG P | 128 KB | A4EE65AC | 3 |
| CHR0 | BANDAI 86 ZG C | 32 KB | E2E400B7 | 3 |
| N/A | ROMs Combined | 160 KB | CE07194F | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Mitsubishi | M5M231001 202P | Mask ROM 128 KB | DIP-28 | 632 10X | 8632 | ||
| Mitsubishi | M5M27256 154P | PROM 32 KB | DIP-28 | 619 111 | 8619 | ||
| Sharp | LR74HC161 | 74-161 Series | DIP-16 | 67B 7 | 8629 |
