Release Info
| Catalog ID | BA-DRA |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 27, 1986 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

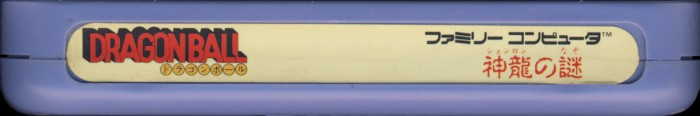

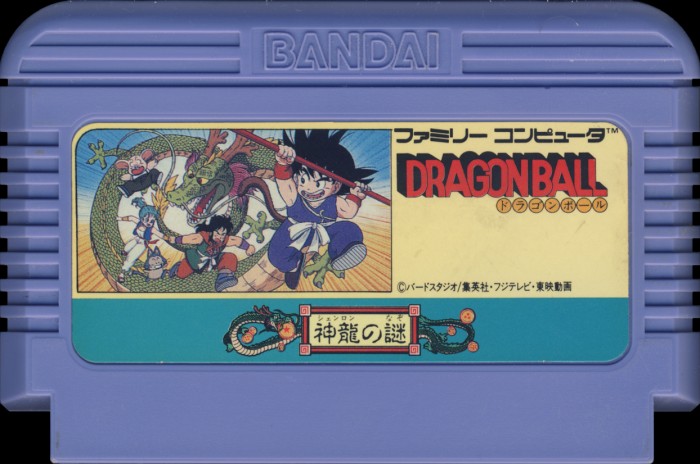

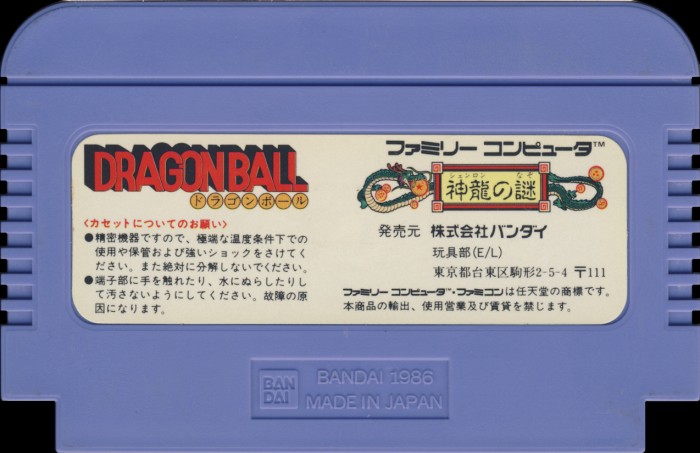

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Blue-Grey |
| Form Factor | Small |
| Embossed Text | Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

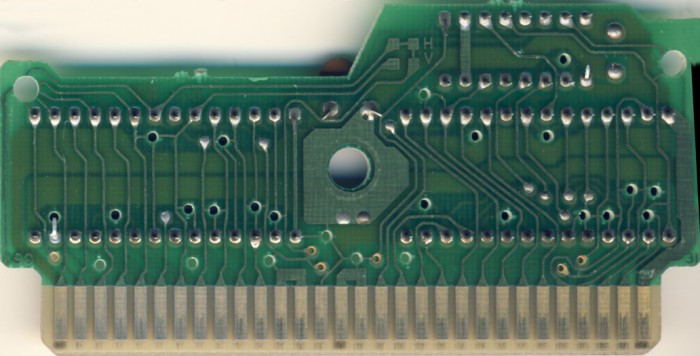

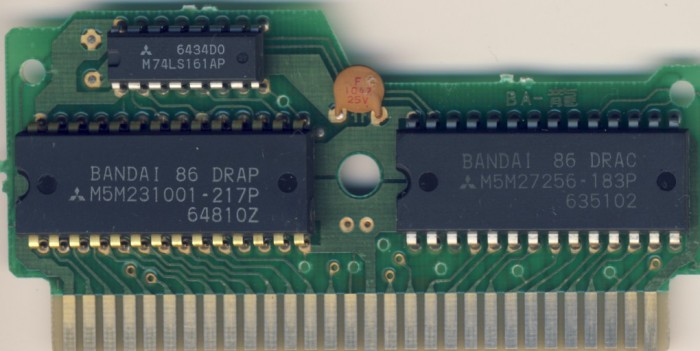

PCB Properties
| Name | BA-龍 |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8647 - 8648 (6) |
| Est First Run | November 1986 |
| PCB Class | BANDAI-GNROM |
| iNES Mapper | 66 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BANDAI 86 DRAP | 128 KB | BDAD07E0 | 6 |
| CHR0 | BANDAI 86 DRAC | 32 KB | 57D43926 | 6 |
| N/A | ROMs Combined | 160 KB | 9552E8DF | 6 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Mitsubishi | M5M231001 217P | Mask ROM 128 KB | DIP-28 | 648 10Z | 8648 | ||
| Mitsubishi | M5M27256 183P | PROM 32 KB | DIP-28 | 635 102 | 8635 | ||
| Mitsubishi | M74LS161AP | 74-161 Series | DIP-16 | 643 4D0 | 8643 |
