Release Info
| Catalog ID | ASM-EO |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | November 24, 1989 |
| Publisher | Asmik |
| Developer | Home Data |
| Players | 1 |
| Peripherals | 3-D Glasses,Famicom Controller |

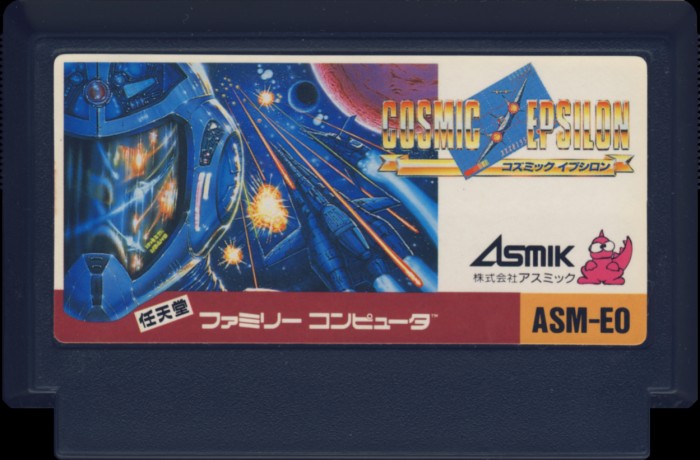

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | ASM-EO |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

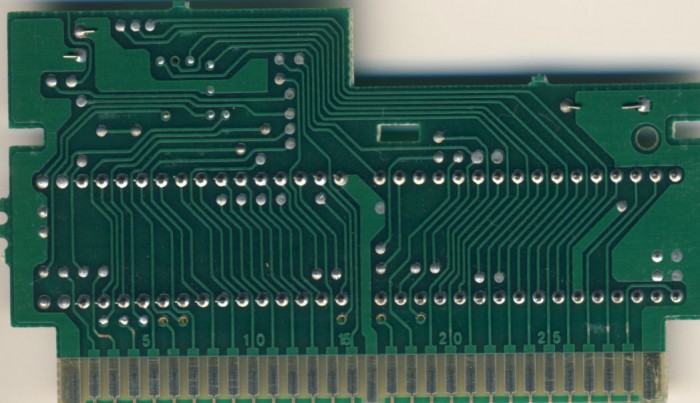

PCB Properties
| Name | HVC-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8939 - 8941 (2) |
| Est First Run | September 1989 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | ASM-EO-0 PRG | 128 KB | AB4AC985 | 2 |
| CHR0 | ASM-EO-0 CHR | 256 KB | 2360540C | 2 |
| N/A | ROMs Combined | 384 KB | DC75732F | 2 |

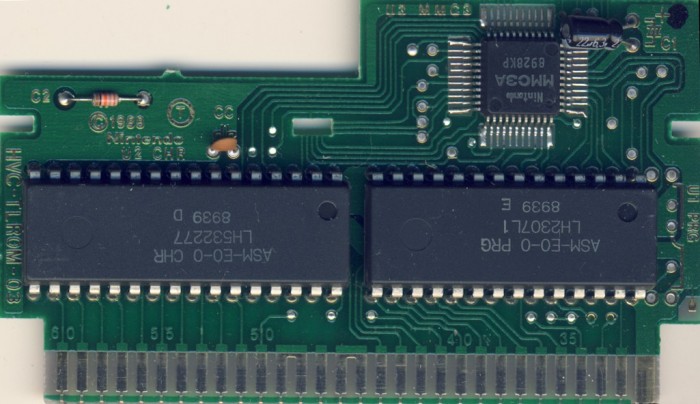

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2307 L1 | Mask ROM 128 KB | DIP-28 | 8939 E | 8939 | |
| U2 CHR | Sharp | LH5322 77 | Mask ROM 256 KB | DIP-32 | 8939 D | 8939 | |
| U3 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | 8928 KP | 8928 |
