Release Info
| Catalog ID | TIX-4M (IF-21) |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 24, 1992 |
| Publisher | Irem |
| Developer | Tamtex |
| Players | 1 |
| Peripherals | Famicom Controller |

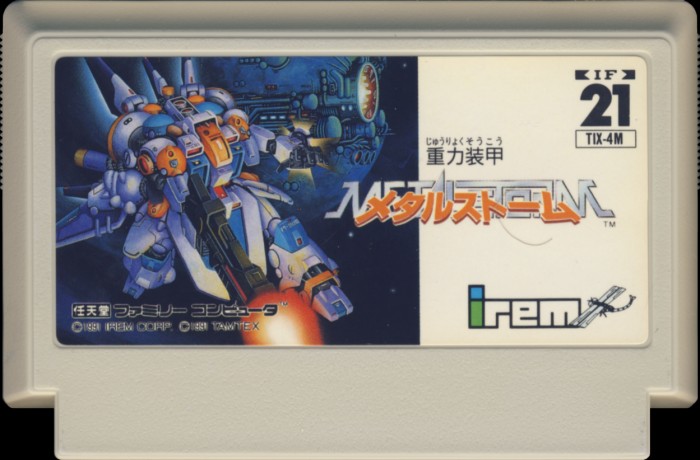

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Light Grey |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TIX-4M |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

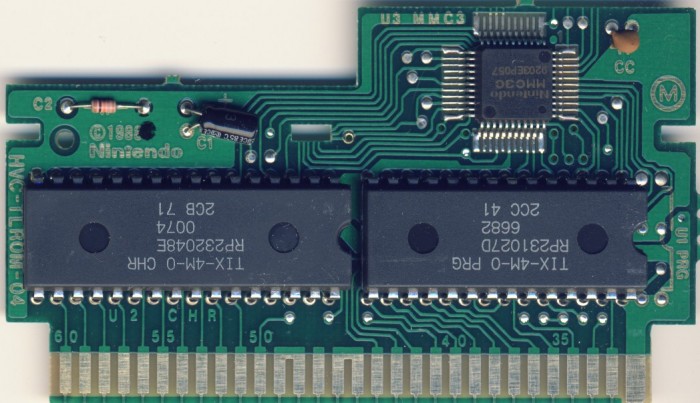

PCB Properties
| Name | HVC-TLROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9210 |
| Est First Run | March 1992 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TIX-4M-0 PRG | 128 KB | BD8A0D7D | 1 |
| CHR0 | TIX-4M-0 CHR | 256 KB | 84729F89 | 1 |
| N/A | ROMs Combined | 384 KB | FDB8AA9A | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 6682 | Mask ROM 128 KB | DIP-28 | 2CC 41 | 9210 | |
| U2 CHR | Ricoh | RP232048E 0074 | Mask ROM 256 KB | DIP-32 | 2CB 71 | 9210 | |
| U3 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9203 EP057 | 9203 |
