Release Info
| Catalog ID |
HFC-HH |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
July 16, 1987 |
| Publisher |
Hudson Soft |
| Developer |
Hudson Soft |
| Players |
1 |
| Peripherals |
Famicom Controller |

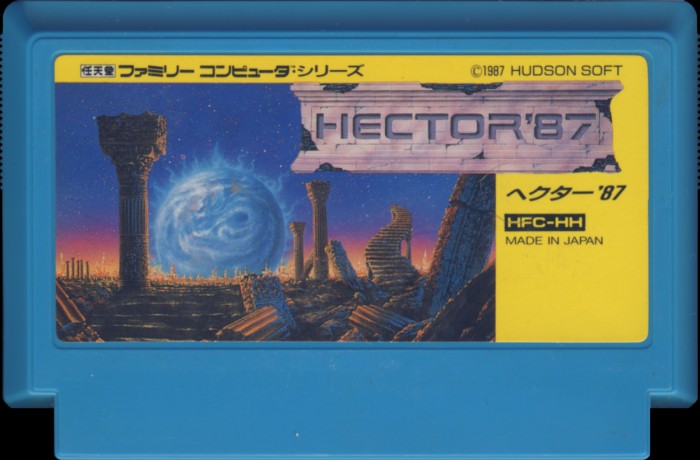

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Ocean Blue |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
HFC-HH |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
05 |
PCB Properties
| Name |
HVC-UNROM-03 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8726 - 8727 (2) |
| Est First Run |
June 1987 |
| PCB Class |
HVC-UNROM |
| iNES Mapper |
2 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161, 74xx32 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
HFC-HH-0 PRG |
128 KB |
784272F2 |
2 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| PRG-ROM |
Sharp |
LH2310
64
|
Mask ROM
128 KB
|
DIP-28 |
8726
E
|
8726 |
|
| CHR RAM |
Sony |
CXK5864PN-15
|
SRAM
8 KB
|
DIP-28 |
7E
42
|
8718 |
|
| LS161 |
Sharp |
LR74HC161
|
74-161 Series
|
DIP-16 |
8719
CA
|
8719 |
|
| LS32 |
NEC |
D74HC32C
|
74-32 Series
|
DIP-14 |
8652
C7
|
8652 |
|
Additional Images
PCB Images
