Release Info
| Catalog ID |
HAL-PB |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
January 7, 1988 |
| Publisher |
HAL Laboratory |
| Developer |
Hyperware |
| Players |
1 |
| Peripherals |
Famicom Controller |

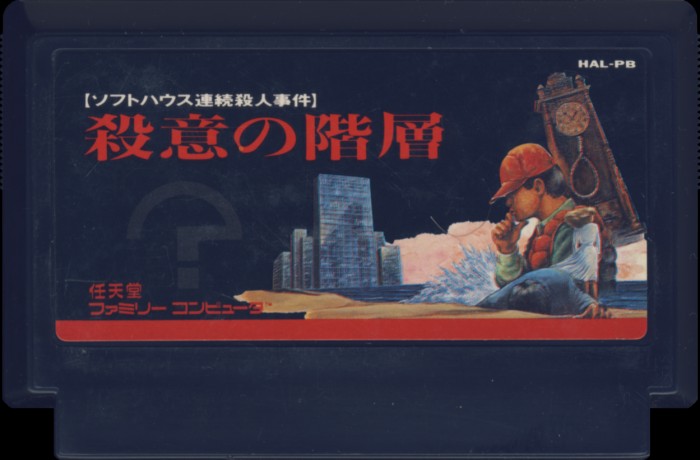

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Black |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
HAL-PB |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
05 |
PCB Properties
| Name |
HVC-SNROM-04 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8751 |
| Est First Run |
December 1987 |
| PCB Class |
HVC-SNROM |
| iNES Mapper |
1 |
| Mirroring |
Mapper Ctrl |
| Battery present |
Yes |
| WRAM |
8 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
MMC1A |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
HAL-PB-0 PRG |
256 KB |
2858933B |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| PRG |
Sharp |
LH5322
11
|
Mask ROM
256 KB
|
DIP-32 |
8751
D
|
8751 |
|
| CHR |
NEC |
64S20
|
SRAM
8 KB
|
DIP-28 |
8748
M5
|
8748 |
|
|
Sharp |
MMC1A
|
Nintendo MMC1
|
DIP-24 |
8749
A
|
8749 |
|
|
Sharp |
LH5164D3-L
|
SRAM
8 KB
|
DIP-28 |
8749
5 D
|
8749 |
|
