Release Info
| Catalog ID | CAP-IM |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | September 24, 1987 |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 1 |
| Peripherals | Mahjong Controller,Famicom Controller |

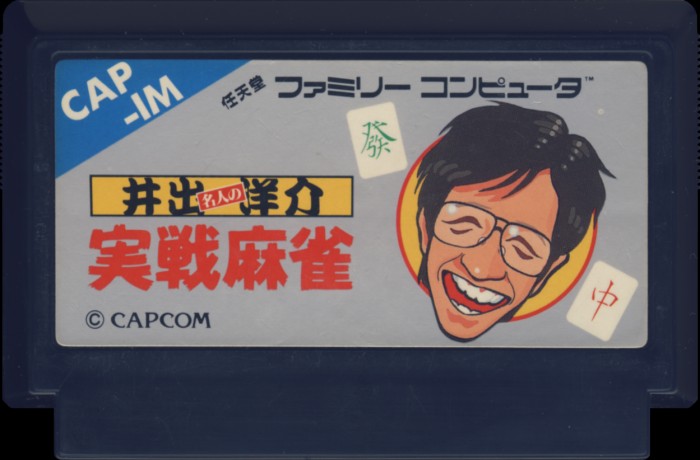

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | CAP-IM |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 05 |
PCB Properties
| Name | HVC-UNROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8737 - 8943 (4) |
| Est First Run | September 1987 |
| PCB Class | HVC-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | CAP-IM-1 PRG | 128 KB | 9FAE4D46 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG-ROM | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8747 KX | 8747 | |
| CHR RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 8745 MX | 8745 | |
| LS161 | Toshiba | 74HC161AP | 74-161 Series | DIP-16 | 8737 H | 8737 | |
| LS32 | Toshiba | 74HC32AP | 74-32 Series | DIP-14 | 8741 H | 8741 |
