Release Info
| Catalog ID | CBS-SA |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 25, 1986 |
| Publisher | CBS / Sony Group |
| Developer | ISCO |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Battleship Grey |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | CBS-SA |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 17² |

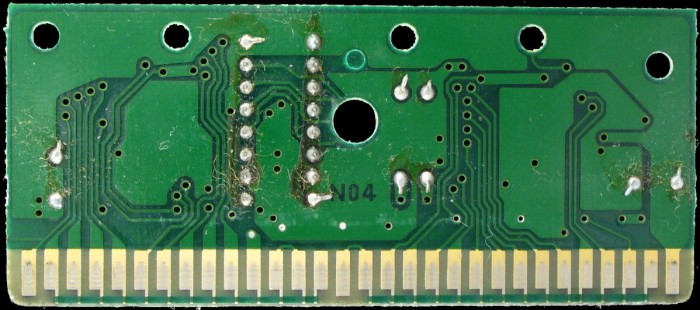

PCB Properties
| Name | N04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Mfg17 |
| Mfg Range | 8647 |
| Est First Run | November 1986 |
| PCB Class | HVC-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | D8EE1E43 | 1 |
| CHR0 | Not Present | 32 KB | FAD30692 | 1 |
| N/A | ROMs Combined | 64 KB | FA6D4281 | 1 |

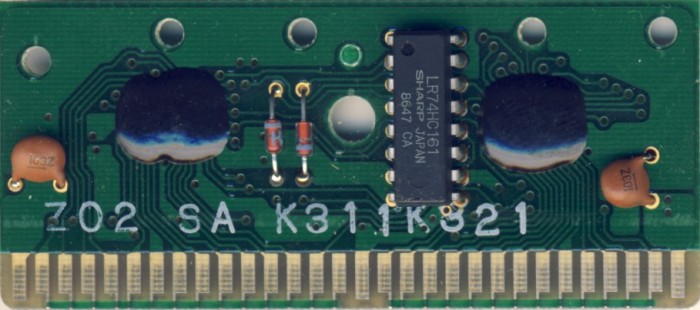

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | _UnkMfg17-2 | SA | Chip-on-Board PCB | PCB | Z02 K311K321 | ||
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| Sharp | LR74HC161 | 74-161 Series | DIP-16 | 8647 CA | 8647 |
