Release Info
| Catalog ID | PIX-XA-01 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | May 11, 1990 |
| Publisher | Pixel |
| Developer | Pixel |
| Players | 1 |
| Peripherals | Famicom Controller |

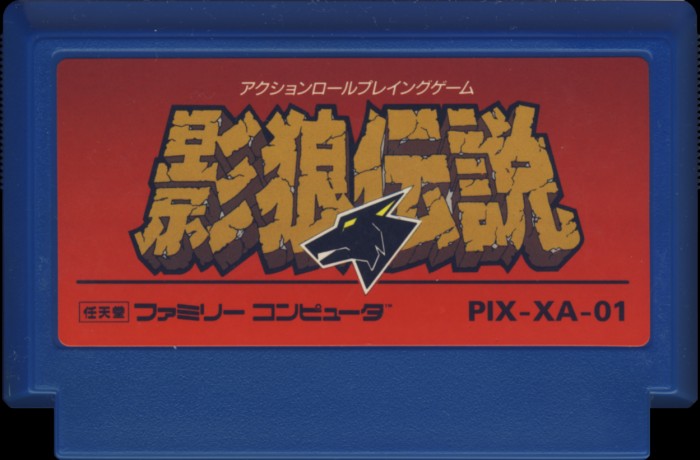

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | PIX-XA-01 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

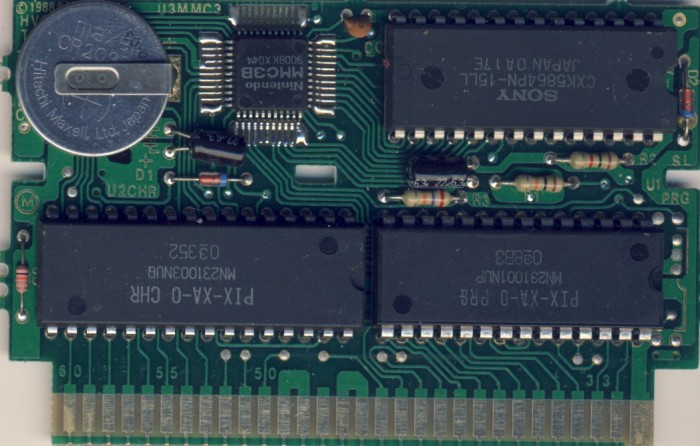

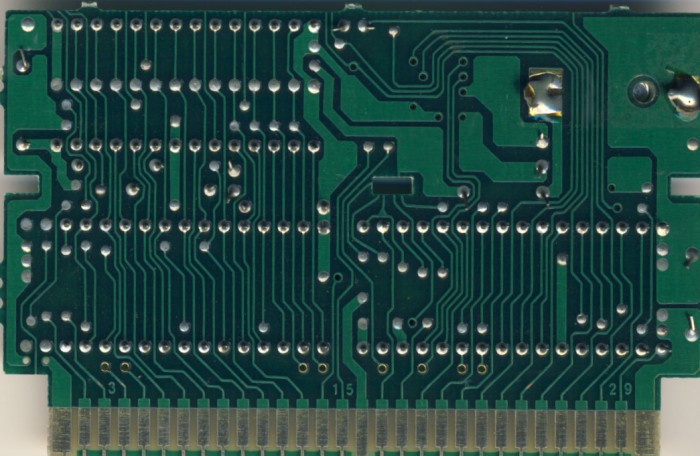

PCB Properties
| Name | HVC-TKROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9013 |
| Est First Run | March 1990 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PIX-XA-0 PRG | 128 KB | 49E834C3 | 1 |
| CHR0 | PIX-XA-0 CHR | 128 KB | 6A661390 | 1 |
| N/A | ROMs Combined | 256 KB | C9187B43 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Panasonic | MN231001 NUP | Mask ROM 128 KB | DIP-28 | 0 B3 | 9013 | |
| U2 CHR | Panasonic | MN231003 NUQ | Mask ROM 128 KB | DIP-32 | 0 52 | 9012 | |
| U3 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9008 KX044 | 9008 | |
| U4 W-RAM | Sony | CXK5864PN-15LL | SRAM 8 KB | DIP-28 | 0A 17E | 9001 |
