Release Info
| Catalog ID |
HFC-V1 |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
December 8, 1989 |
| Publisher |
Hudson Soft |
| Developer |
Hudson Soft |
| Players |
1 |
| Peripherals |
Famicom Controller |

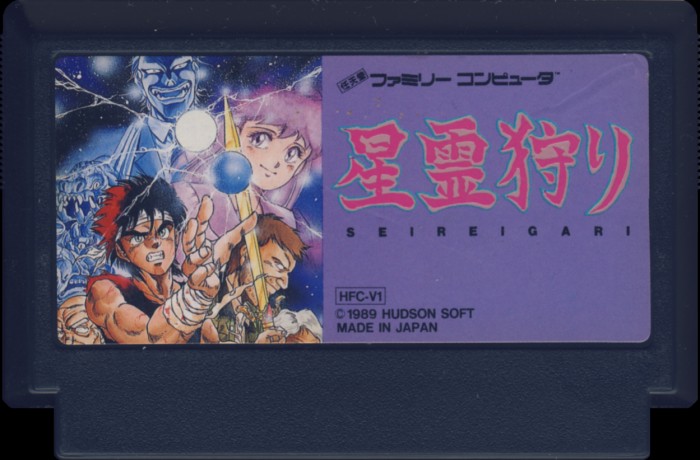

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Black |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
HFC-V1 |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
00 |
PCB Properties
| Name |
HVC-UOROM-01 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8944 |
| Est First Run |
November 1989 |
| PCB Class |
HVC-UOROM |
| iNES Mapper |
2 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161, 74xx32 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
HFC-V1-0 PRG |
256 KB |
D8F651E2 |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG-ROM |
Sharp |
LH5322
75
|
Mask ROM
256 KB
|
DIP-32 |
8944
D
|
8944 |
|
| U2 CHR-RAM |
NEC |
D4364C-15L
|
SRAM
8 KB
|
DIP-28 |
8937
MX001
|
8937 |
|
| U3 74HC161 |
Phillips |
PC74HC161P
|
74-161 Series
|
DIP-16 |
8927
HnS
|
8927 |
650560T |
| U4 74HC32 |
Phillips |
PC74HC32P
|
74-32 Series
|
DIP-14 |
8931
HnS
|
8931 |
648430T |
Additional Images
PCB Images
