Release Info
| Catalog ID | TCF-3Q |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 5, 1991 |
| Publisher | Tecmo |
| Developer | Tecmo |
| Players | 1 |
| Peripherals | Famicom Controller |

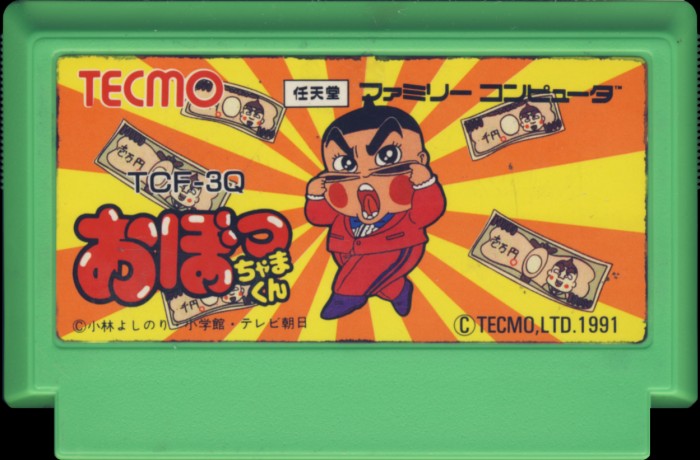

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Lime |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TCF-3Q |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 12 |
PCB Properties
| Name | HVC-SKROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9111 |
| Est First Run | March 1991 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TCF-3Q-0 PRG | 128 KB | 09EEFDE3 | 1 |
| CHR0 | TCF-3Q-0 CHR | 128 KB | 3EF8C92F | 1 |
| N/A | ROMs Combined | 256 KB | E24483B1 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G 32 | Mask ROM 128 KB | DIP-28 | 9111 E | 9111 | |
| U2 CHR | Sharp | LH2311 U5 | Mask ROM 128 KB | DIP-32 | 9109 D | 9109 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9109 7 AA | 9109 | |
| U4 W-RAM | Sharp | LH5164D-10L | SRAM 8 KB | DIP-28 | 9037 1 DB | 9037 |
