Release Info
| Catalog ID | CAP-SS |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | February 8, 1986 |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 2 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Red |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | CAP-SS |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |

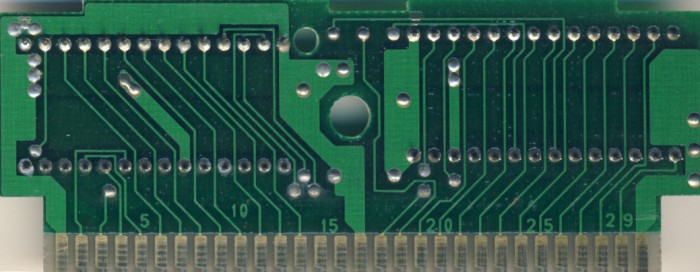

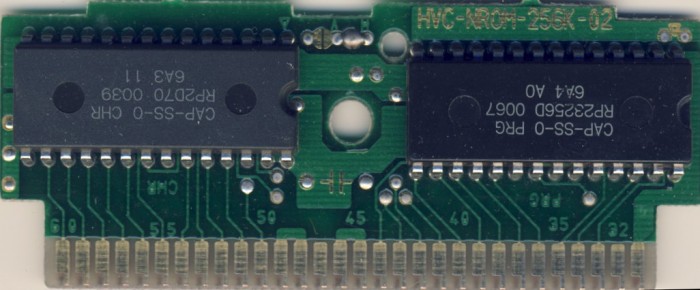

PCB Properties
| Name | HVC-NROM-256K-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8601 - 8605 (2) |
| Est First Run | January 1986 |
| PCB Class | HVC-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | CAP-SS-0 PRG | 32 KB | 06093B5E | 2 |
| CHR0 | CAP-SS-0 CHR | 8 KB | 7DA3EDE2 | 2 |
| N/A | ROMs Combined | 40 KB | 10BAEEF3 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Ricoh | RP23256D 0067 | Mask ROM 32 KB | DIP-28 | 6A4 A0 | 8605 | |
| CHR | Ricoh | RP2D70 0039 | Mask ROM 8 KB | DIP-28 | 6A3 11 | 8604 |
