Release Info
| Catalog ID | KSC-DG |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | November 22, 1988 |
| Publisher | Kemco |
| Developer | Icom Simulations |
| Players | 1 |
| Peripherals | Famicom Controller |

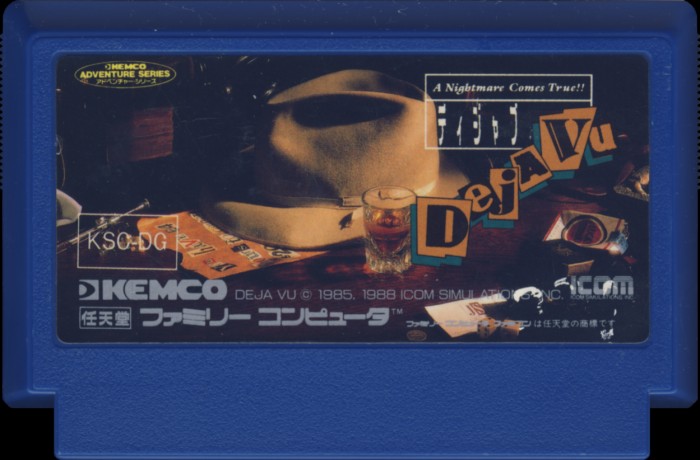

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | KSC-DG |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

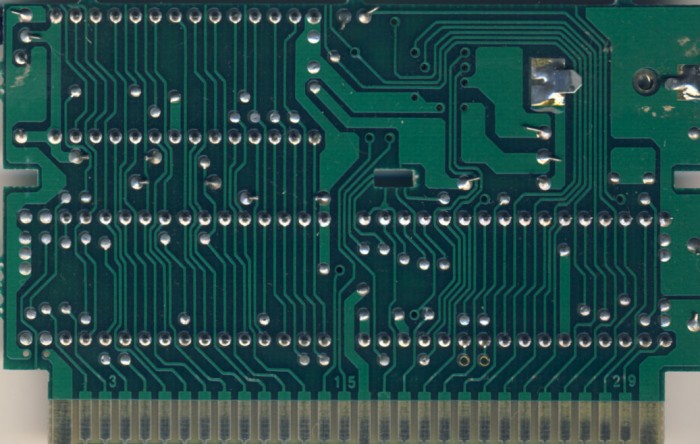

PCB Properties
| Name | HVC-TKROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8846 |
| Est First Run | November 1988 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KSC-DG-0 PRG | 128 KB | D4042702 | 1 |
| CHR0 | KSC-DG-0 CHR | 256 KB | 8F0B2365 | 1 |
| N/A | ROMs Combined | 384 KB | F053AC5F | 1 |

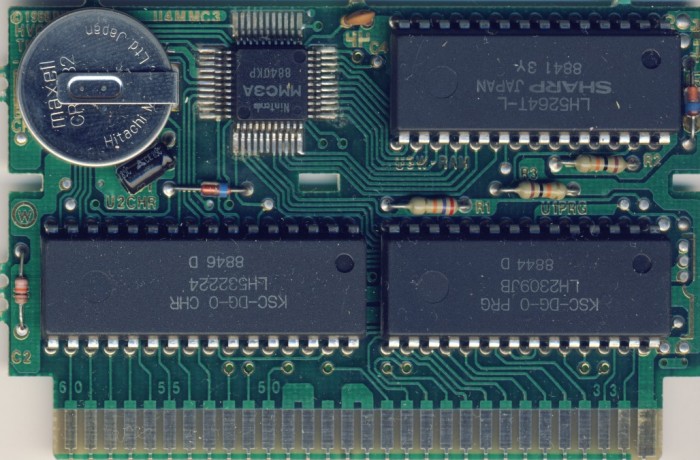

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2309 JB | Mask ROM 128 KB | DIP-28 | 8844 D | 8844 | |
| U2 CHR | Sharp | LH5322 24 | Mask ROM 256 KB | DIP-32 | 8846 D | 8846 | |
| U3 W-RAM | Sharp | LH5264T-L | SRAM 8 KB | DIP-28 | 8841 3 Y | 8841 | |
| U4 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | 8840 KP | 8840 |
