Release Info
| Catalog ID | HVC-BA |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 7, 1983 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | Famicom Controller |

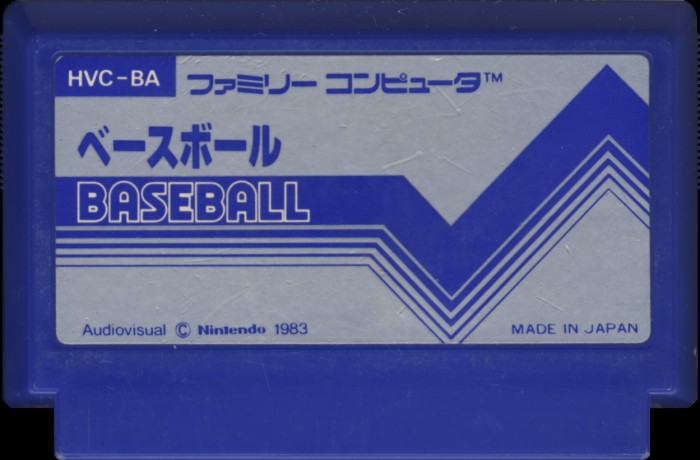

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Midnight Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-BA |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

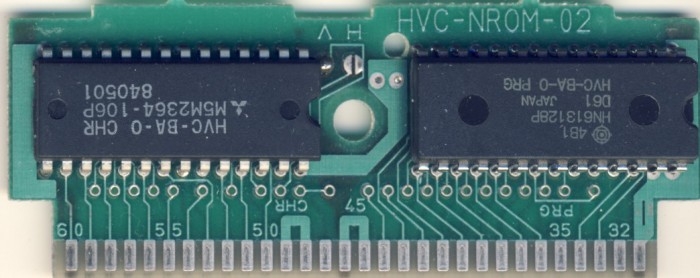

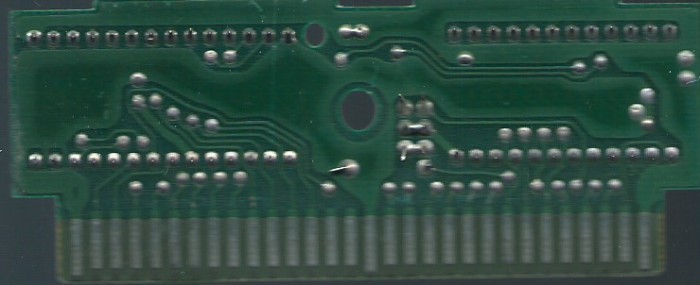

PCB Properties
| Name | HVC-NROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8401 - 8614 (10) |
| Est First Run | January 1984 |
| PCB Class | HVC-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-BA-0 PRG | 16 KB | D18A3DDE | 11 |
| CHR0 | HVC-BA-0 CHR | 8 KB | C27EEF20 | 11 |
| N/A | ROMs Combined | 24 KB | 78A48B23 | 11 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Hitachi | HN613128P D61 | Mask ROM 16 KB | DIP-28 | 4B1 | 8406 | |
| CHR | Mitsubishi | M5M2364 106P | Mask ROM 8 KB | DIP-28 | 8405 01 | 8405 |
