Release Info
| Catalog ID | SFC-CC |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | March 4, 1986 |
| Publisher | Soft Pro |
| Developer | Konami |
| Players | 2 |
| Peripherals | Famicom Controller |

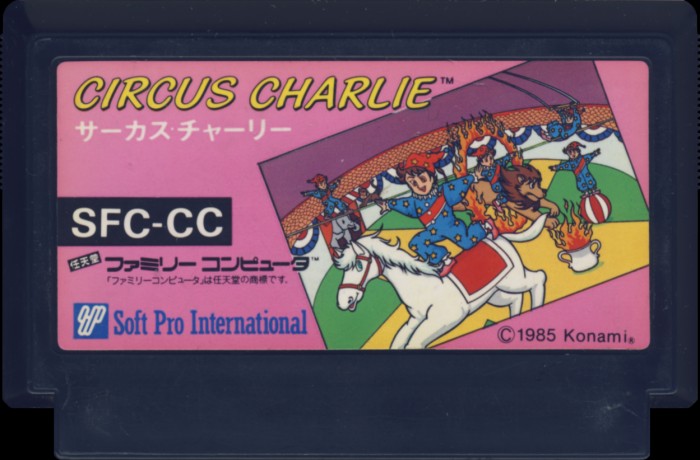

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | SFC-CC |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 02 |

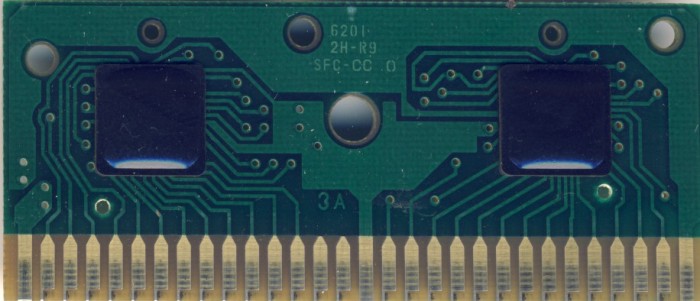

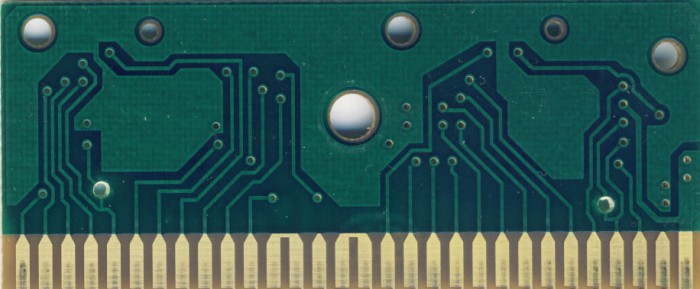

PCB Properties
| Name | 3A |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | OKI |
| Mfg Range | 8605 - 8605 (2) |
| Est First Run | February 1986 |
| PCB Class | HVC-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 16 KB | 1497C75E | 2 |
| CHR0 | Not Present | 8 KB | F76C592A | 2 |
| N/A | ROMs Combined | 24 KB | B87AB35A | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | OKI | SFC-CC 0 | Chip-on-Board PCB | PCB | 62 01 | 8605 | 2H-R9 |
| __Unknown | EP128 | Bonded ROM 16 KB | EPOXY | ||||
| __Unknown | EP64 | Bonded ROM 8 KB | EPOXY |
