Release Info
| Catalog ID | SHI-UU |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 7, 1990 |
| Publisher | Yutaka |
| Developer | Interlink |
| Players | 1 |
| Peripherals | Famicom Controller |

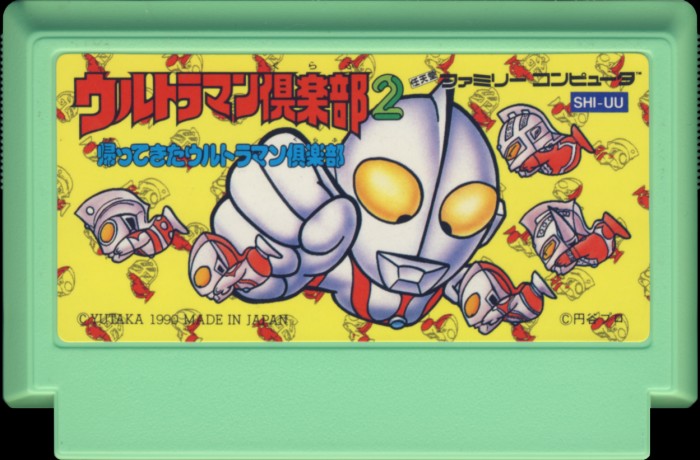

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Lawn Green |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | SHI-UU |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |

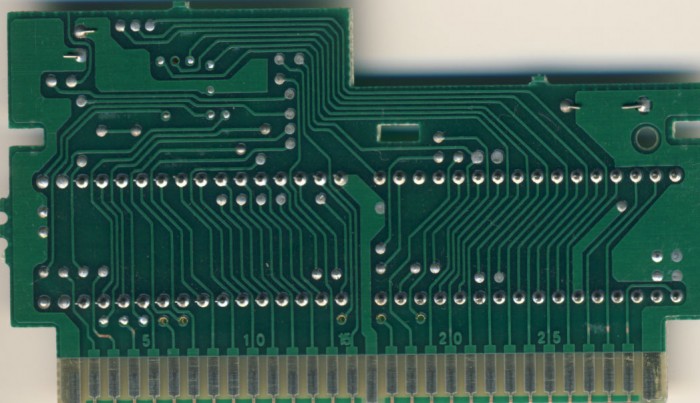

PCB Properties
| Name | HVC-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9006 |
| Est First Run | February 1990 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SHI-UU-0 PRG | 128 KB | A52A8119 | 1 |
| CHR0 | SHI-UU-0 CHR | 128 KB | 43E008C3 | 1 |
| N/A | ROMs Combined | 256 KB | 7980C4F7 | 1 |

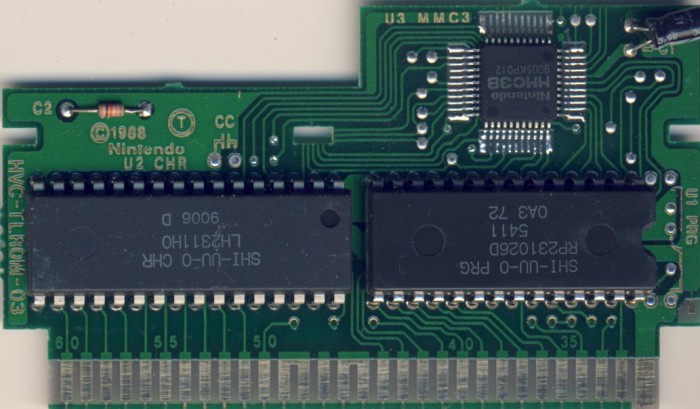

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5411 | Mask ROM 128 KB | DIP-28 | 0A3 72 | 9003 | |
| U2 CHR | Sharp | LH2311 H0 | Mask ROM 128 KB | DIP-32 | 9006 D | 9006 | |
| U3 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9005 KP012 | 9005 |
