Release Info
| Catalog ID | NES-EK-NOE |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | July 18, 1992 |
| Publisher | JVC |
| Developer | LucasFilm Games |
| Players | 1 |
| Peripherals | NES Controller |

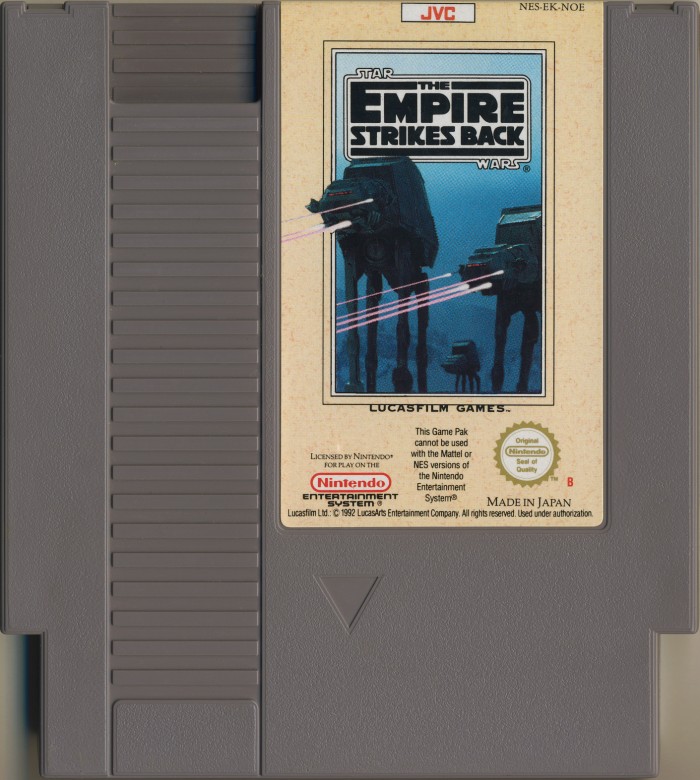

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-EK-NOE |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

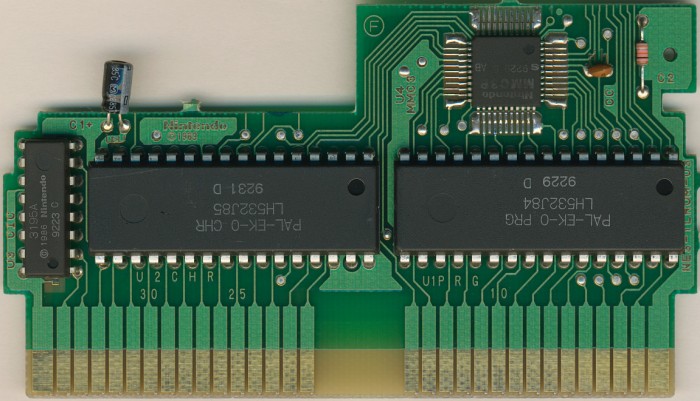

PCB Properties
| Name | NES-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9231 |
| Est First Run | August 1992 |
| PCB Class | NES-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-EK-0 PRG | 256 KB | 69CB509C | 2 |
| CHR0 | PAL-EK-0 CHR | 256 KB | 3BDAA968 | 2 |
| N/A | ROMs Combined | 512 KB | 54E43C57 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH532J 84 | Mask ROM 256 KB | DIP-32 | 9229 D | 9229 | |
| U2 CHR | Sharp | LH532J 85 | Mask ROM 256 KB | DIP-32 | 9231 D | 9231 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9223 C | 9223 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9229 5 AB | 9229 |
