Release Info
| Catalog ID | NES-EB-NOE |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | July 3, 1991 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

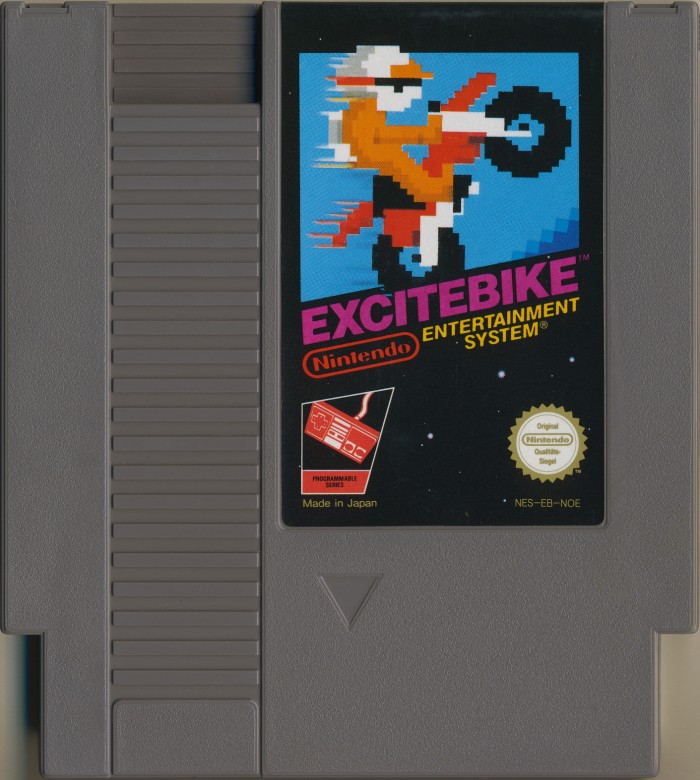

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-EB-NOE |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 28 |

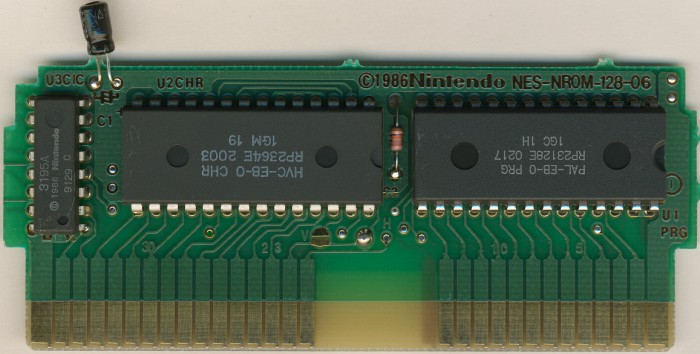

PCB Properties
| Name | NES-NROM-128-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9129 |
| Est First Run | July 1991 |
| PCB Class | NES-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-EB-0 PRG | 16 KB | 0B5667E9 | 5 |
| CHR0 | HVC-EB-0 CHR | 8 KB | E5F72401 | 22 |
| N/A | ROMs Combined | 24 KB | 8A0C7337 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP23128E 0217 | Mask ROM 16 KB | DIP-28 | 1GC 1H | 9127 | |
| U2 CHR | Ricoh | RP2364E 2003 | Mask ROM 8 KB | DIP-28 | 1GM 19 | 9129 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9129 C | 9129 |
