Release Info
| Catalog ID | NES-PR-NOE |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | September 13, 1992 |
| Publisher | Taito |
| Developer | EIM |
| Players | 1 |
| Peripherals | NES Controller |

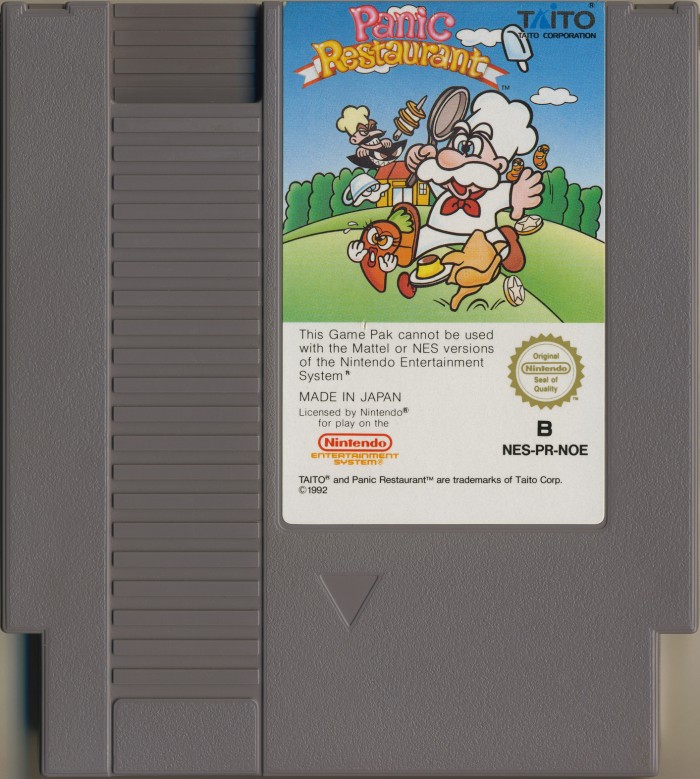

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-PR-NOE |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 08 |

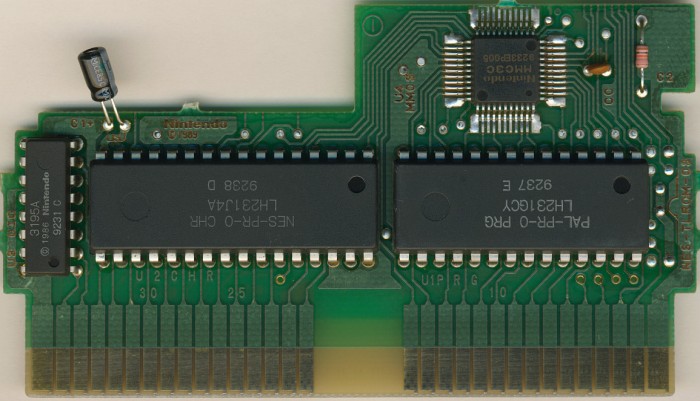

PCB Properties
| Name | NES-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9238 |
| Est First Run | September 1992 |
| PCB Class | NES-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-PR-0 PRG | 128 KB | 1EFDCCDD | 2 |
| CHR0 | NES-PR-0 CHR | 128 KB | CFDE7937 | 3 |
| N/A | ROMs Combined | 256 KB | BBFE23F4 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G CY | Mask ROM 128 KB | DIP-28 | 9237 E | 9237 | |
| U2 CHR | Sharp | LH231J 4A | Mask ROM 128 KB | DIP-32 | 9238 D | 9238 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9231 C | 9231 | |
| U4 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9233 EP005 | 9233 |
