Release Info
| Catalog ID | NES-XZ-NOE |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | June 27, 1991 |
| Publisher | Nintendo |
| Developer | Technos |
| Players | 4 |
| Peripherals | NES Controller,4-Player Adapter |

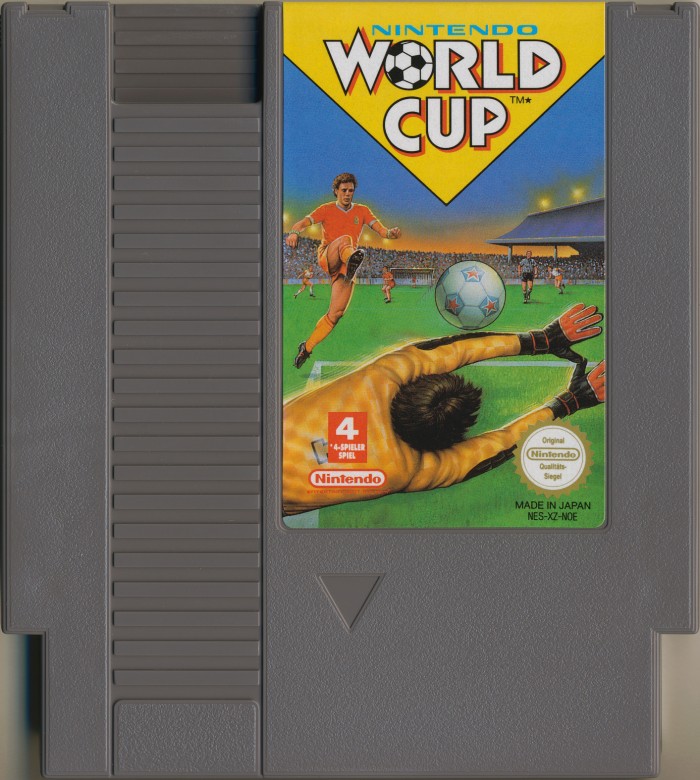

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-XZ-NOE |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

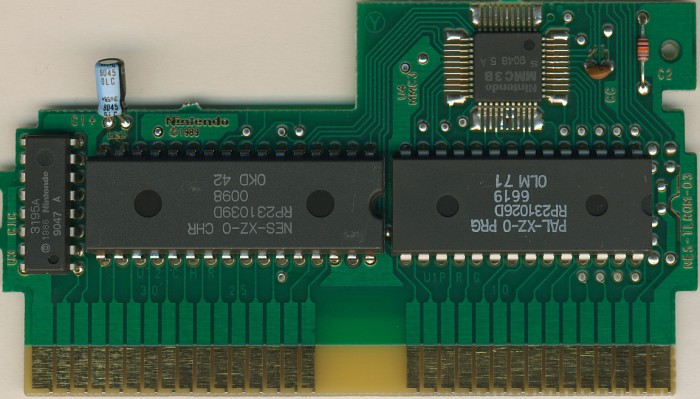

PCB Properties
| Name | NES-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9048 - 9133 (2) |
| Est First Run | December 1990 |
| PCB Class | NES-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-XZ-0 PRG | 128 KB | 725B0234 | 5 |
| CHR0 | NES-XZ-0 CHR | 128 KB | 92477D53 | 9 |
| N/A | ROMs Combined | 256 KB | 8DA6667D | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 6619 | Mask ROM 128 KB | DIP-28 | 0LM 71 | 9046 | |
| U2 CHR | Ricoh | RP231039D 0098 | Mask ROM 128 KB | DIP-32 | 0KD 42 | 9040 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9047 A | 9047 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9048 5 A | 9048 |
