Release Info
| Catalog ID | NES-48-NOE |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | August 15, 1992 |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 1 |
| Peripherals | NES Controller |

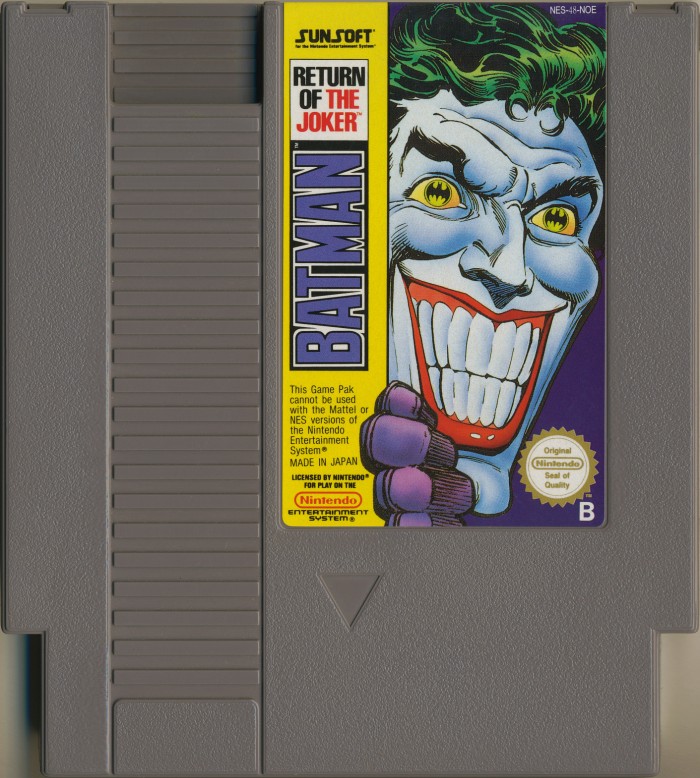

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-48-NOE |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 07 |

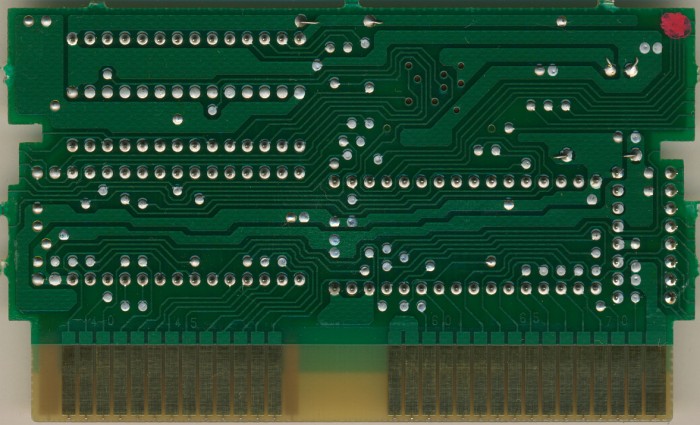

PCB Properties
| Name | NES-JSROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9239 - 9239 (2) |
| Est First Run | September 1992 |
| PCB Class | NES-JSROM |
| iNES Mapper | 69 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | FME-7 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-48-0 PRG | 128 KB | 5E74AAFC | 4 |
| CHR0 | PAL-48-0 CHR | 256 KB | AE83FD09 | 4 |
| N/A | ROMs Combined | 384 KB | BA327FD9 | 4 |

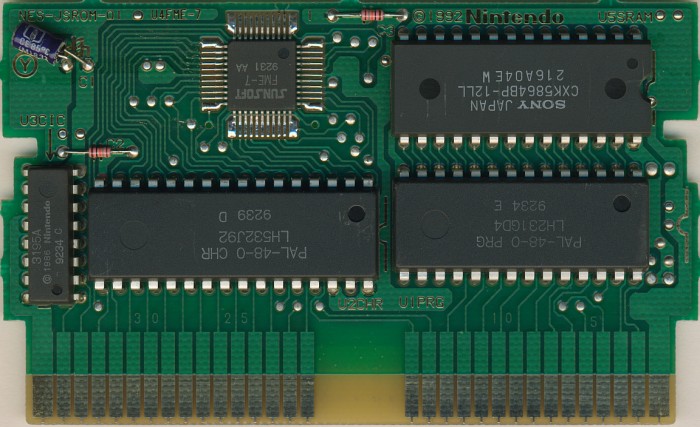

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G D4 | Mask ROM 128 KB | DIP-28 | 9234 E | 9234 | |
| U2 CHR | Sharp | LH532J 92 | Mask ROM 256 KB | DIP-32 | 9239 D | 9239 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9234 C | 9234 | |
| U4 FME-7 | Sharp | FME-7 | Sunsoft FME-7 | TQFP-44 | 9231 AA | 9231 | |
| U5 SRAM | Sony | CXK5864BP-12LL | SRAM 8 KB | DIP-28 | 216 A04EW | 9216 |
