Release Info
| Catalog ID | NES-B8-FRA |
|---|---|
| Region | France (PAL-B) |
| Class | Licensed |
| Release Date | June 13, 1991 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | NES Controller |

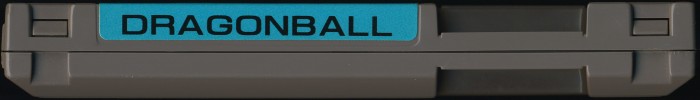

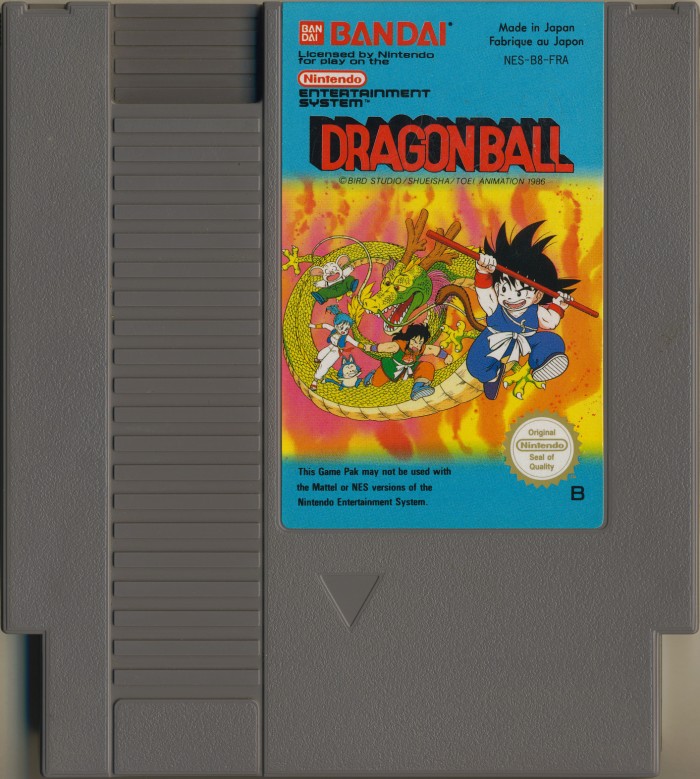

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-B8-FRA |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

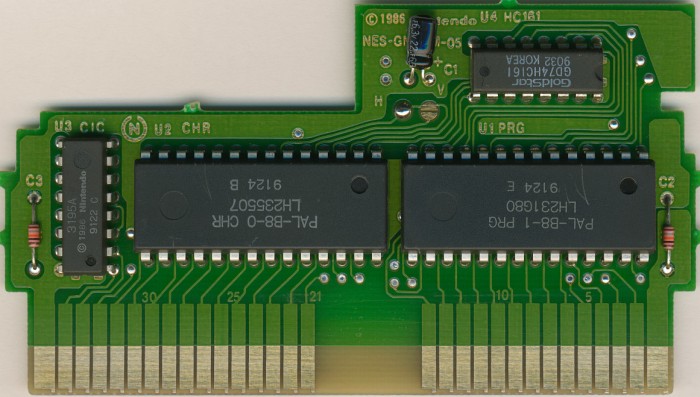

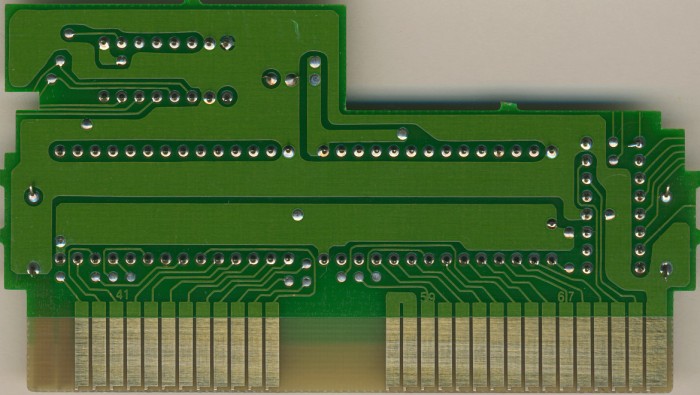

PCB Properties
| Name | NES-GNROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9124 - 9152 (2) |
| Est First Run | June 1991 |
| PCB Class | NES-GNROM |
| iNES Mapper | 66 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-B8-1 PRG | 128 KB | E2AB39A2 | 3 |
| CHR0 | PAL-B8-0 CHR | 32 KB | 9E1295E7 | 4 |
| N/A | ROMs Combined | 160 KB | B0BC46D1 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G 80 | Mask ROM 128 KB | DIP-28 | 9124 E | 9124 | |
| U2 CHR | Sharp | LH2355 07 | Mask ROM 32 KB | DIP-28 | 9124 B | 9124 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9122 C | 9122 | |
| U4 HC161 | GoldStar | GD74HC161 | 74-161 Series | DIP-16 | 9032 | 9032 |
