Release Info
| Catalog ID | NES-HY-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | September 1, 1986 |
| Publisher | Nintendo |
| Developer | Pax Softnica |
| Players | 2 |
| Peripherals | NES Controller |

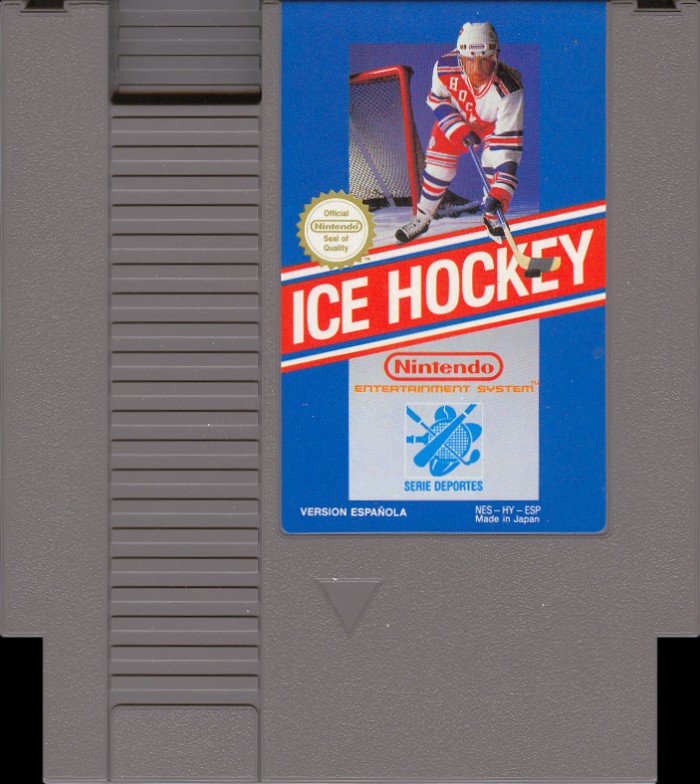

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-HY-ESP |
| Seal of Quality | PAL: Round (Official) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

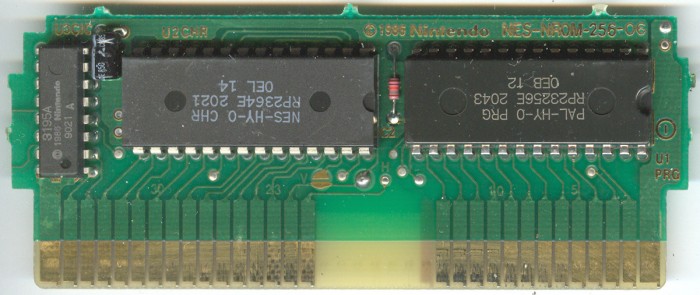

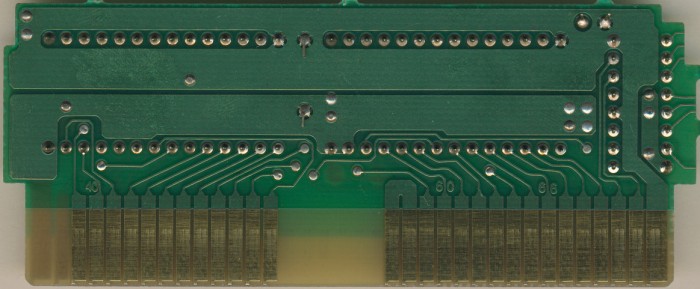

PCB Properties
| Name | NES-NROM-256-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9021 |
| Est First Run | May 1990 |
| PCB Class | NES-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-HY-0 PRG | 32 KB | CCCC1034 | 4 |
| CHR0 | NES-HY-0 CHR | 8 KB | F10FC90A | 10 |
| N/A | ROMs Combined | 40 KB | 92924548 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP23256E 2043 | Mask ROM 32 KB | DIP-28 | 0EB 12 | 9018 | |
| U2 CHR | Ricoh | RP2364E 2021 | Mask ROM 8 KB | DIP-28 | 0EL 14 | 9019 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9021 A | 9021 |
