Release Info
| Catalog ID | NES-U5-NOE |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | August 1, 1991 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | NES Controller |

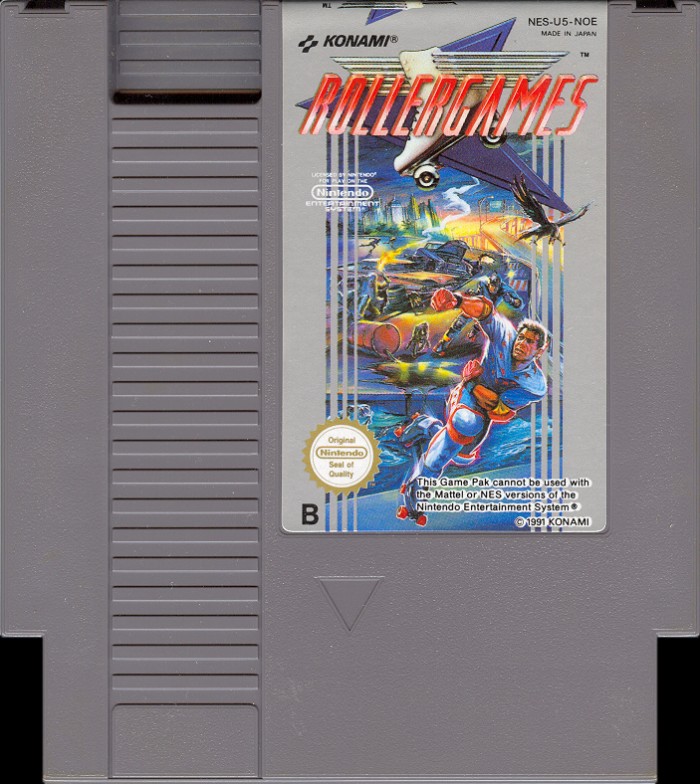

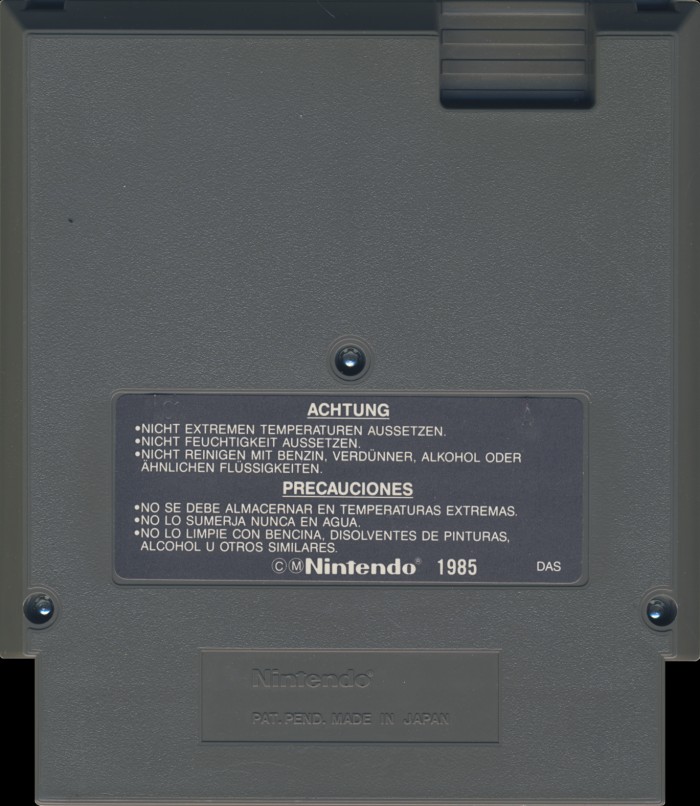

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-U5-NOE |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 21 |
PCB Properties
| Name | NES-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | NES-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-U5-0 PRG | 128 KB | 9AABD829 | 5 |
| CHR0 | PAL-U5-0 CHR | 128 KB | 2201C1AE | 5 |
| N/A | ROMs Combined | 256 KB | BED47813 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|
