Release Info
| Catalog ID | NES-54-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | February 2, 1992 |
| Publisher | Imagineer |
| Developer | Anco |
| Players | 2 |
| Peripherals | NES Controller |

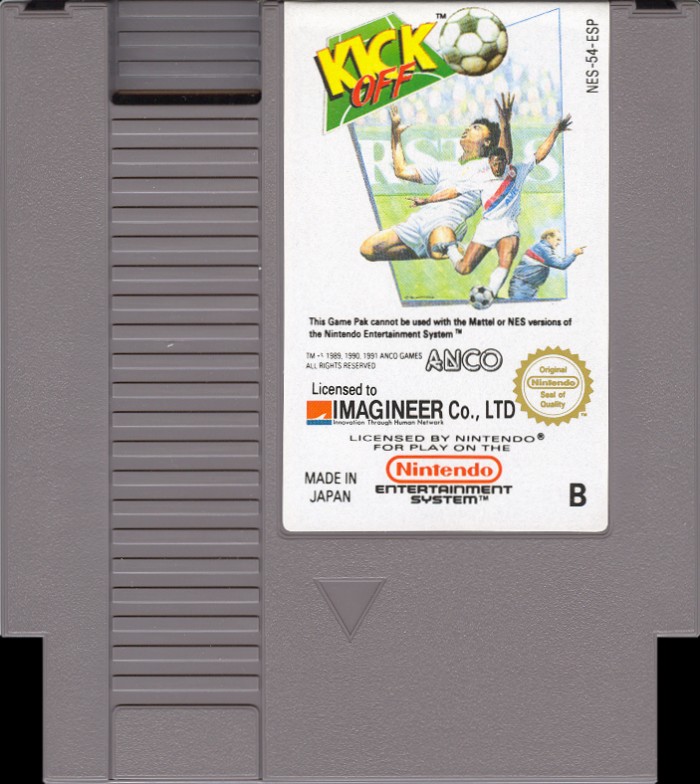

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-54-ESP |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 20 |
PCB Properties
| Name | NES-UNROM-09 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9205 |
| Est First Run | February 1992 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-54-0 PRG | 128 KB | D161888B | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Toshiba | TC531002CP J656 | Mask ROM 128 KB | DIP-28 | 9205 EAI | 9205 | |
| U2 CHR RAM | Motorola | MCM6064P12 | SRAM 8 KB | DIP-28 | 9145 HCK | 9145 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9151 C | 9151 | |
| U4 HC161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 149 ER | 9149 | |
| U5 HC32 | Toshiba | 74HC32AP | 74-32 Series | DIP-14 | 9121 H | 9121 |
