Release Info
| Catalog ID | NES-2U-NOE |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | May 13, 1991 |
| Publisher | Mindscape |
| Developer | Tengen |
| Players | 4 |
| Peripherals | NES Controller,4-Player Adapter |

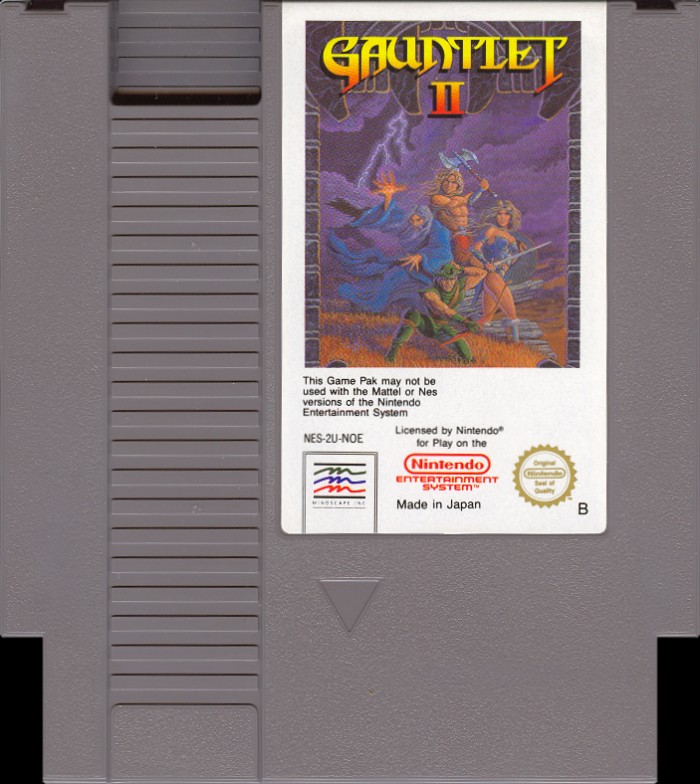

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-2U-NOE |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-TSROM-08 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9106 - 9132 (4) |
| Est First Run | February 1991 |
| PCB Class | NES-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-2U-0 PRG | 128 KB | 3B997543 | 6 |
| CHR0 | NES-2U-0 CHR | 128 KB | FD61C9FE | 8 |
| N/A | ROMs Combined | 256 KB | 79F688BC | 6 |

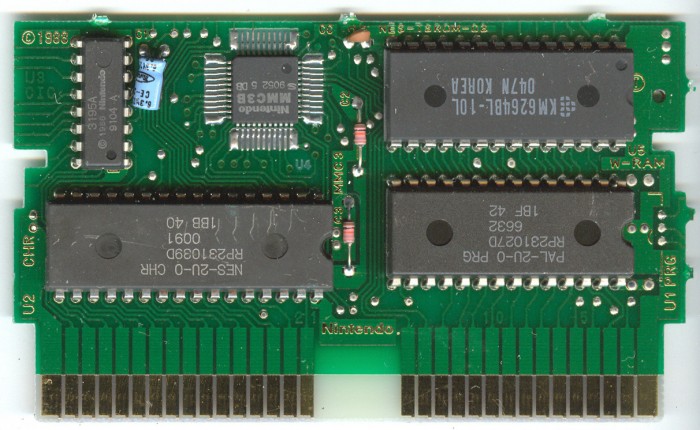

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 6632 | Mask ROM 128 KB | DIP-28 | 1BF 42 | 9106 | |
| U2 CHR | Ricoh | RP231039D 0091 | Mask ROM 128 KB | DIP-32 | 1BB 40 | 9105 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9104 A | 9104 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9052 5 DB | 9052 | |
| U5 W-RAM | Samsung | KM6264BL-10L | SRAM 8 KB | DIP-28 | 047 N | 9047 |
